ISL59311IRZ - Renesas Electronics

Description: The ISL59311 is a high bandwidth triple differential amplifier with integrated encoding of video sync signals. The inputs are suitable for handling high speed video or other communications signals in either single-ended or differential form, and the common-mode input range extends all the way to the negative rail enabling ground-referenced signaling in single supply applications. The high bandwidth enables differential signaling onto standard twisted-pair or coax with very low harmonic distortion, while int

Download ISL59311IRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

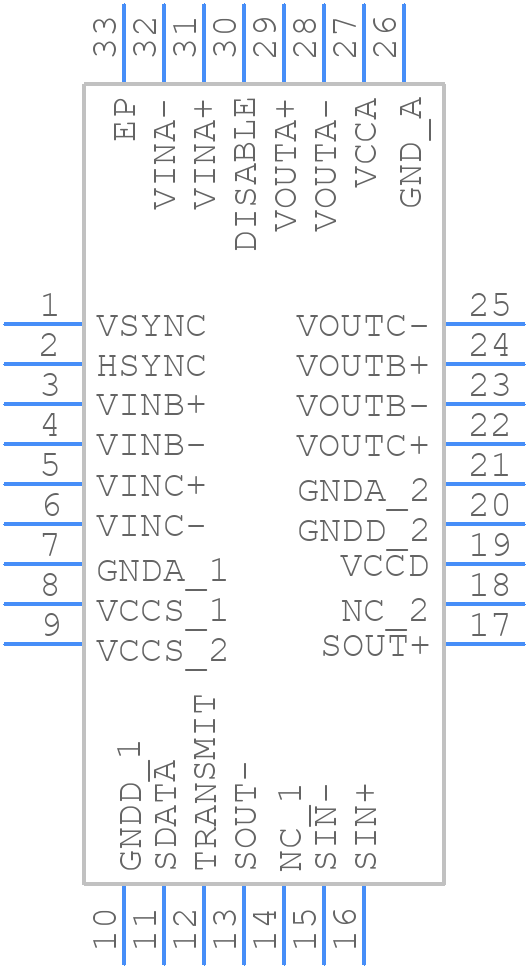

ISL59311IRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL59311IRZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L32.5x6A
click to zoom
3D Models
ISL59311IRZ - Renesas Electronics - 3D model - Quad Flat No-Lead - L32.5x6A
click to zoom

ISL59311IRZ Details

  • Manufacturer Part Number:

    ISL59311IRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Manufacturer Package Code:

    L32.5X6A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

  • Time@Peak Reflow Temperature-Max (s):

    30

ISL59311IRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL59311IRZ involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
  • To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF with an ESR of 1ohm or less is recommended. Additionally, the output voltage can be stabilized by adding a 10nF capacitor in parallel with the output capacitor.
  • The ISL59311IRZ can handle a maximum input voltage of 18V. However, it's recommended to operate the device within the specified input voltage range of 7V to 15V for optimal performance and reliability.
  • The ISL59311IRZ output voltage can be programmed using the FB (feedback) pin. By connecting a resistive divider network between the output voltage and the FB pin, the output voltage can be set to a specific value. The resistive divider network should be designed to provide a voltage at the FB pin that corresponds to the desired output voltage.
  • The ISL59311IRZ has a thermal derating of 6.4mW/°C above 25°C. This means that the device's power dissipation should be reduced by 6.4mW for every degree Celsius above 25°C to ensure reliable operation.
