ISL59601IRZ-T7A - Renesas Electronics

Description: The ISL59601, ISL59602, ISL59603, ISL59604, and ISL59605 (the “MegaQ™” product family) are single-channel adaptive equalizers designed to automatically compensate for long runs of Cat 5/6 or RG-59 cable, producing high quality video output with no user interaction. The ISL59601 equalizes Cat 5/6 up to a distance of 1000 feet (300 meters), while the ISL59605 equalizes up to 5300 feet (1600 meters). MegaQ™ compensates for high frequency cable losses of up to 60dB (ISL59605) at 5MHz as well as source amplitude

Download ISL59601IRZ-T7A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

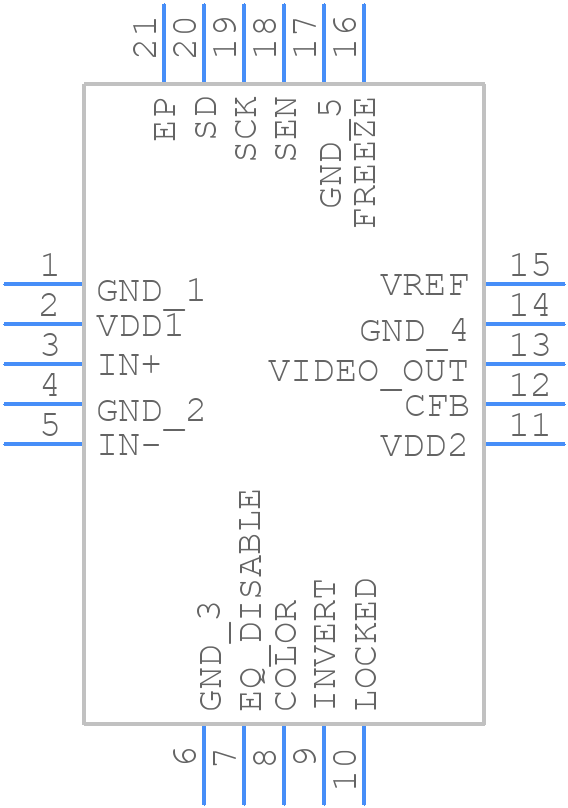

ISL59601IRZ-T7A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL59601IRZ-T7A - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L20.4x4C-1
click to zoom
3D Models
ISL59601IRZ-T7A - Renesas Electronics - 3D model - Quad Flat No-Lead - L20.4x4C-1
click to zoom

ISL59601IRZ-T7A Details

  • Manufacturer Part Number:

    ISL59601IRZ-T7A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    L20.4X4C

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ISL59601IRZ-T7A Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ISL59601IRZ-T7A requires a specific power-up sequence, which is detailed in the datasheet. Additionally, the device has a power-on reset (POR) circuit that ensures the device is properly initialized. It is recommended to follow the power-up sequence and POR timing guidelines to ensure proper operation.
  • The ISL59601IRZ-T7A is rated for operation from -40°C to +125°C, but it is recommended to operate the device within the recommended operating temperature range of -20°C to +85°C for optimal performance and reliability.
  • Renesas provides a troubleshooting guide in the application note AN1996, which includes steps to identify and resolve common issues with the ISL59601IRZ-T7A. Additionally, Renesas offers technical support and resources to help engineers troubleshoot and resolve issues.
  • Yes, the ISL59601IRZ-T7A is a high-frequency device and requires proper EMI/EMC design considerations to ensure compliance with regulatory requirements and to minimize electromagnetic interference. Renesas provides guidelines for EMI/EMC design in the application note AN1997.
