ISL59605IRZ-T7 - Renesas Electronics

Description: The ISL59601, ISL59602, ISL59603, ISL59604, and ISL59605 (the “MegaQ™” product family) are single-channel adaptive equalizers designed to automatically compensate for long runs of Cat 5/6 or RG-59 cable, producing high quality video output with no user interaction. The ISL59601 equalizes Cat 5/6 up to a distance of 1000 feet (300 meters), while the ISL59605 equalizes up to 5300 feet (1600 meters). MegaQ™ compensates for high frequency cable losses of up to 60dB (ISL59605) at 5MHz as well as source amplitude

Download ISL59605IRZ-T7 Model

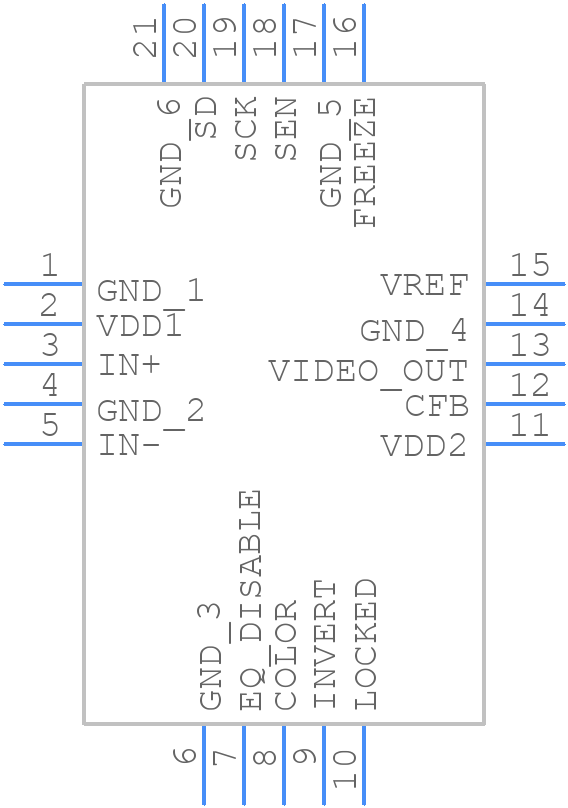

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL59605IRZ-T7 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L20.4x4C-1
click to zoom
3D Models
ISL59605IRZ-T7 - Renesas Electronics  - 3D model - Quad Flat No-Lead - L20.4x4C-1
click to zoom

ISL59605IRZ-T7 Details

  • Manufacturer Part Number:

    ISL59605IRZ-T7

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Manufacturer Package Code:

    L20.4X4C

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

  • Time@Peak Reflow Temperature-Max (s):

    30

ISL59605IRZ-T7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ISL59605IRZ-T7 should consider the following: keep the input and output traces short and away from each other, use a solid ground plane, and place decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the device operates within the specified temperature range, it's essential to provide adequate heat dissipation. This can be achieved by using a heat sink, ensuring good airflow, and keeping the device away from other heat sources. Additionally, the device should be operated within the recommended junction temperature (TJ) range of -40°C to 125°C.
  • The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor, such as X5R or X7R. This capacitor helps to filter out noise and ripple on the input voltage.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback resistors are correctly connected and of the correct value. Also, check for any signs of overheating or oscillation.
  • Yes, the ISL59605IRZ-T7 is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications. Additionally, it's manufactured using a high-reliability process, and it's designed to operate in harsh environments.
