ISL61851DIBZ-T - Renesas Electronics

Description: The ISL6185 USB power controller family provides fully independent overcurrent (OC) fault protection for two or more USB ports. This product family consists of sixteen individual functional product variants and three package options. It is operation rated for a nominal +2. 5V to +5V range and is specified over the full commercial and industrial temperature ranges. Each ISL6185 type incorporates in a single package two 71mΩ P-channel MOSFET power switches for power control. Each features internal current mon

Download ISL61851DIBZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

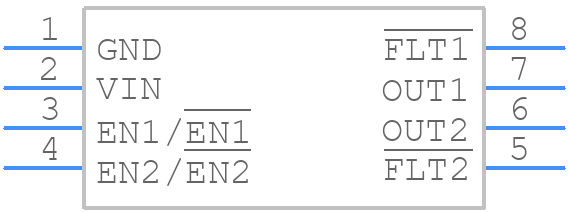

Symbol
ISL61851DIBZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL61851DIBZ-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15-ren4
click to zoom
3D Models
ISL61851DIBZ-T - Renesas Electronics - 3D model - Small Outline Packages - M8.15-ren4
click to zoom

ISL61851DIBZ-T Details

  • Manufacturer Part Number:

    ISL61851DIBZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-07-18

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    1

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.075 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    2.1

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ISL61851DIBZ-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Renesas provides a component selection guide in their datasheet, which includes recommendations for inductors, capacitors, and resistors. Additionally, the application note AN1965 provides more detailed guidance on component selection and optimization.
  • The ISL61851DIBZ-T is rated for operation from -40°C to +125°C, but the maximum ambient temperature range may be limited by the specific application and thermal design. It's recommended to consult the datasheet and application notes for more information on thermal management and design considerations.
  • The ISL61851DIBZ-T has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The application note AN1965 provides more detailed information on how to implement overcurrent protection and adjust the threshold and response time.
  • The recommended input voltage range for the ISL61851DIBZ-T is 2.7V to 5.5V, but the device can operate from 2.5V to 6.5V with reduced performance and efficiency. It's recommended to consult the datasheet for more information on input voltage range and operating conditions.
