Description:The ISL6185 USB power controller family provides fully independent overcurrent (OC) fault protection for two or more USB ports. This product family consists of sixteen individual functional product variants and three package options. It is operation rated for a nominal +2. 5V to +5V range and is specified over the full commercial and industrial temperature ranges. Each ISL6185 type incorporates in a single package two 71mΩ P-channel MOSFET power switches for power control. Each features internal current mon
Renesas provides a recommended layout and placement guide in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
The datasheet provides guidelines for capacitor selection, but it's crucial to consider factors like capacitor type, value, and ESR. X5R or X7R ceramic capacitors are recommended for input and output filtering, and the values should be chosen based on the specific application's requirements and operating frequency.
The ISL61851JIBZ has an operating temperature range of -40°C to +125°C, but it's essential to consider the derating curves and thermal management to ensure reliable operation within the specified temperature range.
The ISL61851JIBZ has a built-in overcurrent protection feature, but it's recommended to add external circuitry, such as a sense resistor and a comparator, to detect and respond to overcurrent conditions. The datasheet provides guidance on implementing overcurrent protection.
The recommended startup sequence is to apply the input voltage, followed by the enable signal (EN). This ensures proper startup and prevents unwanted behavior. The datasheet provides a detailed startup sequence diagram.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL61851JIBZ Overview

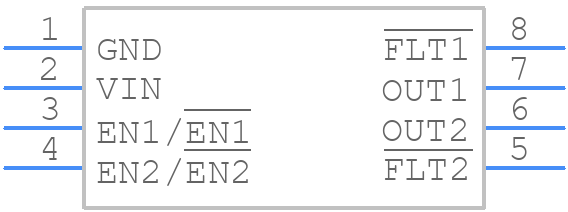

Use the download button to access the ISL61851JIBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL61,
or try a keyword search, such as Power Management Circuits
