ISL61852FIRZ - Renesas Electronics

Description: The ISL6185 USB power controller family provides fully independent overcurrent (OC) fault protection for two or more USB ports. This product family consists of sixteen individual functional product variants and three package options. It is operation rated for a nominal +2. 5V to +5V range and is specified over the full commercial and industrial temperature ranges. Each ISL6185 type incorporates in a single package two 71mΩ P-channel MOSFET power switches for power control. Each features internal current mon

Download ISL61852FIRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

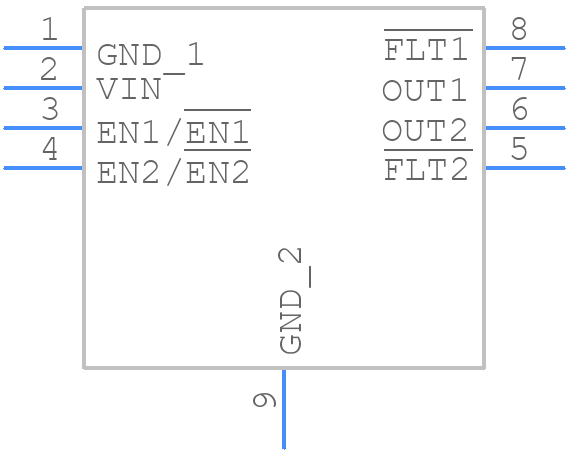

ISL61852FIRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL61852FIRZ - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN_8
click to zoom
3D Models
ISL61852FIRZ - Renesas Electronics - 3D model - Small Outline No-lead - DFN_8
click to zoom

ISL61852FIRZ Details

  • Manufacturer Part Number:

    ISL61852FIRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.3X3J

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    TRIP CURRENT:1.52A;CURRENT LIMIT:0.78A;THERMAL SHUTDOWN:150C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.075 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL61852FIRZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of input and output capacitors depends on the specific application requirements. Renesas recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet provides more detailed information.
  • The ISL61852FIRZ has an operating ambient temperature range of -40°C to +85°C. However, the device can operate up to +125°C with derating. Refer to the datasheet for more information on thermal derating.
  • The ISL61852FIRZ has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the VIN pin and the GND pin. The device will detect overcurrent conditions based on the voltage drop across Rs and shut down the output. Refer to the datasheet for more information on overcurrent protection.
  • The recommended input voltage range for the ISL61852FIRZ is 2.7V to 5.5V. Operating the device outside this range may affect its performance and reliability.
