ISL6256AHAZ-T - Renesas Electronics

Description: The ISL6256, ISL6256A is a highly integrated battery charger controller for Li-ion/Li-ion polymer batteries. High Efficiency is achieved by a synchronous buck topology and the use of a MOSFET, instead of a diode, for selecting power from the adapter or battery. The low side MOSFET emulates a diode at light loads to improve the light load efficiency and prevent system bus boosting. The constant output voltage can be selected for 2, 3 and 4 series Li-ion cells with 0. 5% accuracy over-temperature. It can also

Download ISL6256AHAZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

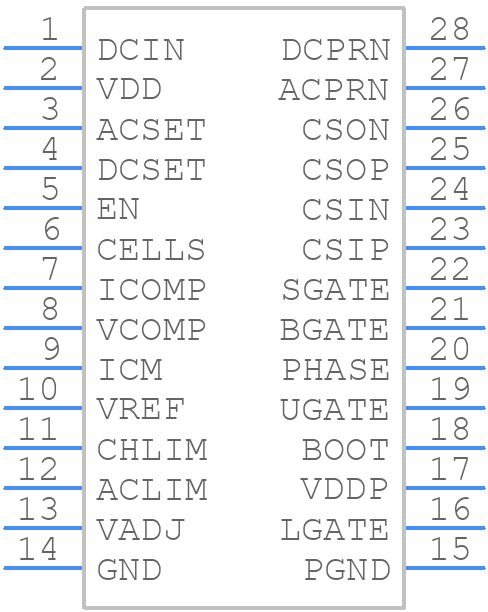

ISL6256AHAZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6256AHAZ-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 28 Ld QSOP
click to zoom
3D Models
ISL6256AHAZ-T - Renesas Electronics - 3D model - Small Outline Packages - 28 Ld QSOP
click to zoom

ISL6256AHAZ-T Details

  • Manufacturer Part Number:

    ISL6256AHAZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QSOP

  • Package Description:

    QSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    M28.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.905 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

ISL6256AHAZ-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the ISL6256AHAZ-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • Renesas provides a compensation calculator tool on their website, which helps designers optimize the compensation network for the voltage regulator based on their specific application requirements. Additionally, the datasheet provides general guidelines for compensation network design.
  • While the datasheet specifies the maximum input voltage rating, it does not explicitly state the maximum allowed input voltage ripple. According to Renesas' application notes, the recommended input voltage ripple is less than 1% of the input voltage to ensure stable operation.
  • Yes, the ISL6256AHAZ-T is rated for operation up to 125°C junction temperature. However, designers should ensure that the device is properly derated for temperature and that the PCB and surrounding components can withstand the high temperatures.
  • Renesas provides a troubleshooting guide in the ISL6256AHAZ-T datasheet, which covers common issues and their possible causes. Additionally, designers can consult Renesas' application notes and technical support resources for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL6256AHAZ-T Overview

Use the download button to access the ISL6256AHAZ-T schematic symbol, PCB footprint, and 3D model.
