ISL6292-1CR5Z - Renesas Electronics

Description: The ISL6292 is an integrated single-cell Li-ion or Li-polymer battery charger capable of operating with an input voltage as low as 2.4V. This charger is designed to work with various types of AC adapters or a USB port. The ISL6292 operates as a linear charger when the AC adapter is a voltage source. The battery is charged in a CC/CV (constant current/constant voltage) profile. The charge current is programmable with an external resistor up to 2A. The ISL6292 can also work with a current-limited adapter to m

Download ISL6292-1CR5Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

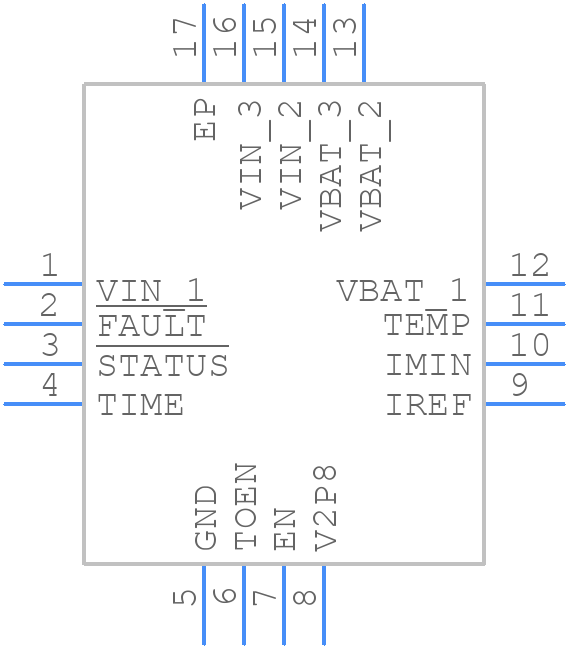

Symbol
ISL6292-1CR5Z - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6292-1CR5Z - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 Ld 5x5 QFN
click to zoom
3D Models
ISL6292-1CR5Z - Renesas Electronics - 3D model - Quad Flat No-Lead - 16 Ld 5x5 QFN
click to zoom

ISL6292-1CR5Z Details

  • Manufacturer Part Number:

    ISL6292-1CR5Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Manufacturer Package Code:

    L16.5X5B

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-11-14

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    4.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ISL6292-1CR5Z Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the ISL6292-1CR5Z evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. Renesas recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and following the guidelines in the datasheet for capacitor selection.
  • The ISL6292-1CR5Z is rated for operation up to 85°C ambient temperature, but the maximum junction temperature is 125°C. Engineers should ensure that the device is properly cooled and that the thermal design is adequate to prevent overheating.
  • The ISL6292-1CR5Z has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to a resistor and capacitor network. The datasheet provides guidelines for setting the overcurrent threshold and response time.
  • The recommended startup sequence is to apply the input voltage, followed by the enable signal (EN pin). This ensures that the device is properly initialized and configured before starting to regulate the output voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL6292-1CR5Z Overview

Use the download button to access the ISL6292-1CR5Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL62, or try a keyword search, such as Power Management Circuits
