Description:The ISL6292B uses dual-mode charge technology to minimize the heat in a linear charger. The ISL6292B is a modification of the original ISL6292 and is optimized for cellular phone travel charger applications. The low-heat generation feature of the dual-mode charger enables the charger IC to be placed inside the connector of the travel charger to completely remove the influence of the adapter cable on the charging performance. Working with a current-limited ac/dc converter, the dualmode charger charges a Li-i
A good PCB layout for the ISL6292BCRZ involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g., 1uF) in parallel with the main output capacitor.
The ISL6292BCRZ can handle a maximum input voltage of 28V, but it's recommended to keep the input voltage below 24V to ensure reliable operation and to prevent overheating.
The power dissipation of the ISL6292BCRZ can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The resulting value should be within the maximum power dissipation rating of the IC to prevent overheating.
The EN (Enable) pin is used to enable or disable the ISL6292BCRZ. When the EN pin is pulled high, the IC is enabled, and when it's pulled low, the IC is disabled. This pin can be used to implement power sequencing or to shut down the IC when not in use.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6292BCRZ Overview

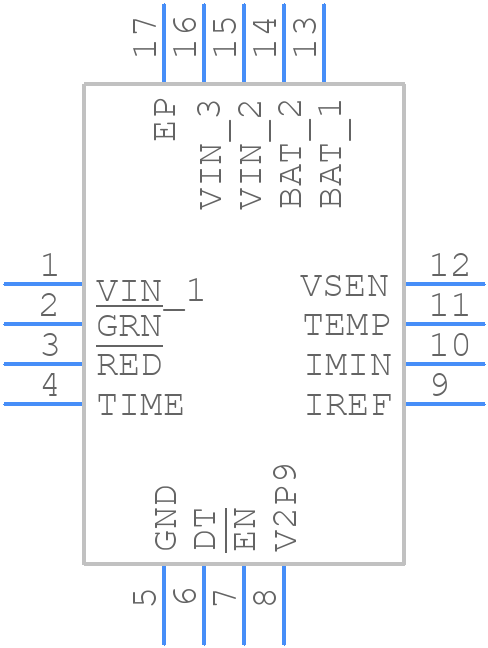

Use the download button to access the ISL6292BCRZ schematic symbol, PCB footprint, and 3D model.
