ISL6398IRTZ-TK - Renesas Electronics

Description: The ISL6398 is a smart and smallest 6-Phase Green PWM controller, designed for networking, datacenter, and POL applications. It includes programmable functions and telemetries for easy use and system flexibility using SMBus, PMBus, or I2C interface, which is designed to program NVM banks up to 8 different compensations and system parameters. This minimizes external components and significantly reduces design complexity and PCB area, and simplifies the manufacturing process. The ISL6398 utilizes Intersil’s p

Download ISL6398IRTZ-TK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

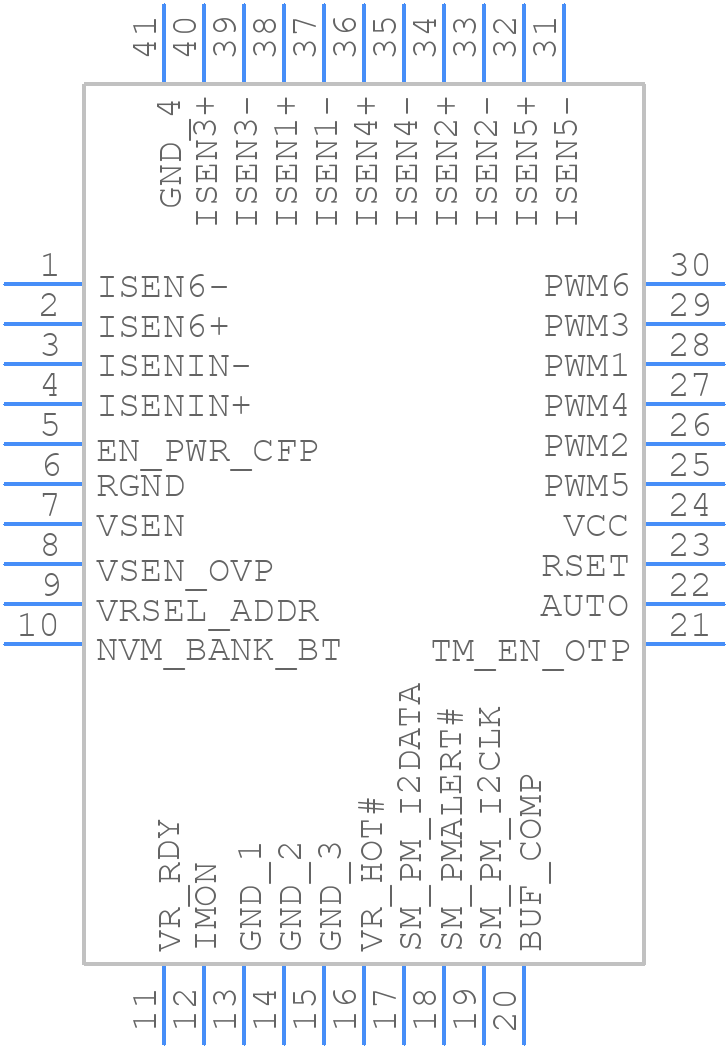

ISL6398IRTZ-TK - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6398IRTZ-TK - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L40.5x5 Rev 2, 7/14
click to zoom
3D Models
ISL6398IRTZ-TK - Renesas Electronics - 3D model - Quad Flat No-Lead - L40.5x5 Rev 2, 7/14
click to zoom

ISL6398IRTZ-TK Details

  • Manufacturer Part Number:

    ISL6398IRTZ-TK

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TQFN

  • Package Description:

    TQFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    L40.5X5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max (Isup):

    45 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    0.402

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ISL6398IRTZ-TK Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Renesas provides a component selection guide in the datasheet, which includes recommendations for inductors, capacitors, and resistors based on the specific application requirements. Additionally, the ISL6398 evaluation board can be used as a reference design.
  • The ISL6398 is rated for operation from -40°C to +85°C, but the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.
  • The ISL6398 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides a detailed description of the overcurrent protection circuit and the recommended component values.
  • Yes, the ISL6398 is qualified for automotive and high-reliability applications, and meets the requirements of AEC-Q100 and other industry standards. However, additional testing and validation may be required for specific applications.
