ISL6614ACB-T - Renesas Electronics

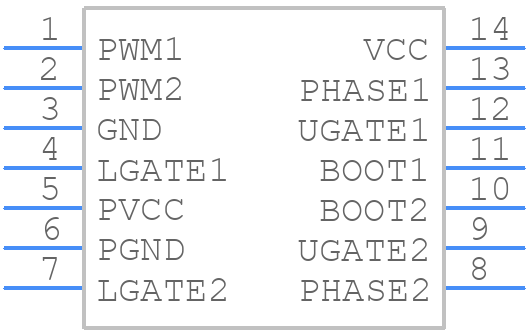

ISL6614ACB-T Details

• Manufacturer Part Number:

  ISL6614ACB-T

• Part Life Cycle Code:

  Obsolete

• Package Description:

  SOIC-14

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• High Side Driver:

  YES

• Interface IC Type:

  HALF BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  R-PDSO-G14

• Length:

  8.65 mm

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Output Characteristics:

  PUSH-PULL

• Output Peak Current Limit-Nom:

  3 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  1.75 mm

• Supply Voltage-Max:

  13.2 V

• Supply Voltage-Min:

  10.8 V

• Supply Voltage-Nom:

  12 V

• Supply Voltage1-Max:

  13.2 V

• Supply Voltage1-Min:

  4.5 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Turn-off Time:

  0.01 µs

• Turn-on Time:

  0.01 µs

• Width:

  3.9 mm
