Description:The ISL78714 automotive-grade Li-ion battery manager IC supervises up to 14 series connected cells and is optimized to meet stringent automotive performance, reliability, and safety requirements. The device provides all the functions expected of such a critical component in a battery management system, such as accurate cell voltage and temperature monitoring, cell balancing, and extensive system diagnostics. In a typical configuration, a master ISL78714 communicates to a host microcontroller through an SPI
Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal protection mechanisms if necessary.
Operating the ISL78714ANZ-T outside the recommended input voltage range of 10.5V to 13.2V may affect its performance, efficiency, and reliability. Using a lower input voltage may reduce the output voltage and current, while using a higher input voltage may increase the risk of overheating and reduce the device's lifespan. It's essential to consult the datasheet and application notes for specific guidance on input voltage tolerance.
To troubleshoot issues with the output voltage or current, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use a multimeter or oscilloscope to measure the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
The ISL78714ANZ-T is designed to meet CISPR 25 Class 5 EMI standards, but it's still essential to follow proper PCB layout and design practices to minimize EMI and ensure EMC compliance. This includes using a solid ground plane, minimizing loop areas, and using shielding and filtering components as necessary. Consult the datasheet and application notes for specific guidance on EMI and EMC considerations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL78714ANZ-T Overview

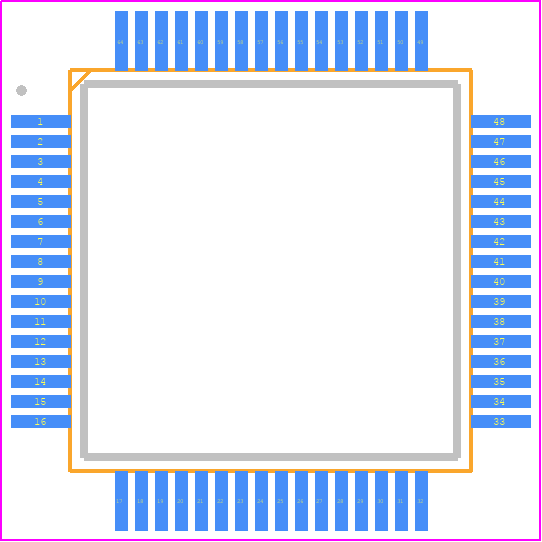

Use the download button to access the ISL78714ANZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL78,
or try a keyword search, such as Power Management Circuits
