ISL9203ACRZ - Renesas Electronics

Description: The ISL9203A is an integrated single-cell Li-ion or Li-polymer battery charger capable of operating with an input voltage as low as 2. 4V. This charger is designed to work with various types of AC adapters. The ISL9203A operates as a linear charger when the AC adapter is a voltage source. The battery is charged in a Constant Current/Constant Voltage (CC/CV) profile. The charge current is programmable with an external resistor up to 1. 5A. The ISL9203A can also work with a current-limited adapter to minimize

Download ISL9203ACRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

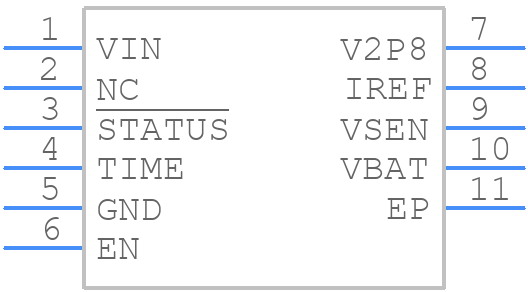

ISL9203ACRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL9203ACRZ - Renesas Electronics PCB footprint - Other - Other - L10.3x3
click to zoom
3D Models
ISL9203ACRZ - Renesas Electronics - 3D model - Other - L10.3x3
click to zoom

ISL9203ACRZ Details

  • Manufacturer Part Number:

    ISL9203ACRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    L10.3X3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-11-14

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    4.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL9203ACRZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the ISL9203 evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ISL9203 datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. Additionally, Renesas provides a component selection guide that helps engineers choose the right components based on their specific application requirements.
  • The ISL9203 is rated for operation from -40°C to +85°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures, and engineers should consult the datasheet and application notes for guidance on thermal management.
  • Renesas provides application notes and troubleshooting guides that help engineers identify and resolve common issues with the ISL9203. These guides cover topics such as layout and component selection, voltage regulator design, and stability analysis.
  • Yes, the ISL9203 is compatible with lead-free soldering processes. Renesas ensures that its products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive and are compatible with lead-free soldering processes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL9203ACRZ Overview

Use the download button to access the ISL9203ACRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL92, or try a keyword search, such as Power Management Circuits
