ISL9230IRZ-T - Renesas Electronics

Description: The ISL9230 is a fully integrated high input voltage single-cell Li-ion battery charger with power path management function. This charger performs the CC/CV charge function required by Li-ion batteries. The charger can withstand an input voltage up to 26V but is disabled when the input voltage exceeds 6. 6V OVP threshold. The input current limit and charge current are programmable with external resistors. When the battery voltage is lower than 3. 0V, the charger preconditions the battery with 10% of the pro

Download ISL9230IRZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

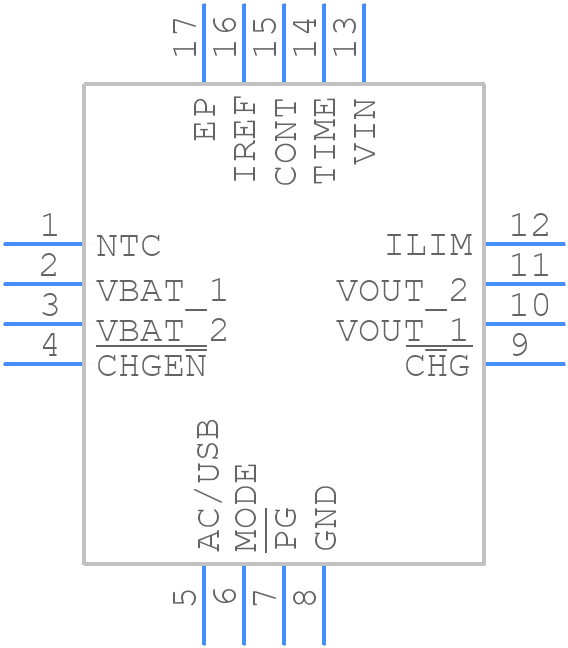

Symbol
ISL9230IRZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL9230IRZ-T - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L16.3x3E 16 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE-1
click to zoom
3D Models
ISL9230IRZ-T - Renesas Electronics - 3D model - Quad Flat No-Lead - L16.3x3E 16 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE-1
click to zoom

ISL9230IRZ-T Details

  • Manufacturer Part Number:

    ISL9230IRZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, PLASTIC, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    L16.3X3E

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    Thermal Shutdown:155C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    6.4 V

  • Supply Voltage-Min (Vsup):

    4.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.6V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL9230IRZ-T Frequently Asked Questions (FAQs)

  • The ISL9230IRZ-T can handle a maximum input voltage of 24V, but it's recommended to operate within the specified input voltage range of 6.5V to 20V for optimal performance.
  • The ISL9230IRZ-T has a programmable battery chemistry table that can be configured using the I2C interface. The device comes with pre-programmed tables for common battery chemistries, but custom tables can be programmed using the ISL9230 evaluation board and software tools.
  • The PROTECT pin is an open-drain output that indicates when the device is in a fault condition, such as overcharge, over-discharge, or over-temperature. It can be connected to a microcontroller or other logic circuit to trigger a system shutdown or alert in case of a fault.
  • Yes, the ISL9230IRZ-T can be used for charging multiple batteries in parallel. However, each battery must have its own sense resistor and thermistor connections to the device. The device can then balance the charge between the batteries and ensure safe charging.
  • The fuel gauge function of the ISL9230IRZ-T has an accuracy of ±5% over the entire operating range. This is achieved through a combination of coulomb counting, voltage monitoring, and temperature compensation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISL9230IRZ-T Overview

Use the download button to access the ISL9230IRZ-T schematic symbol, PCB footprint, and 3D model.
