ISL9237HRZ - Renesas Electronics

Description: The ISL9237 is a buck-boost Narrow Output Voltage DC (NVDC) charger utilizing Intersil’s advanced R3™ Technology to provide high light-load efficiency, fast transient response and seamless DCM/CCM transitions for a variety of mobile and industrial applications. In Charge mode, the ISL9237 takes input power from a wide range of DC power sources (conventional AC/DC charger adapters, USB PD ports, travel adapters, etc. ) and safely charges battery packs with up to 3 cells in a series configuration. ISL9237 sup

Download ISL9237HRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

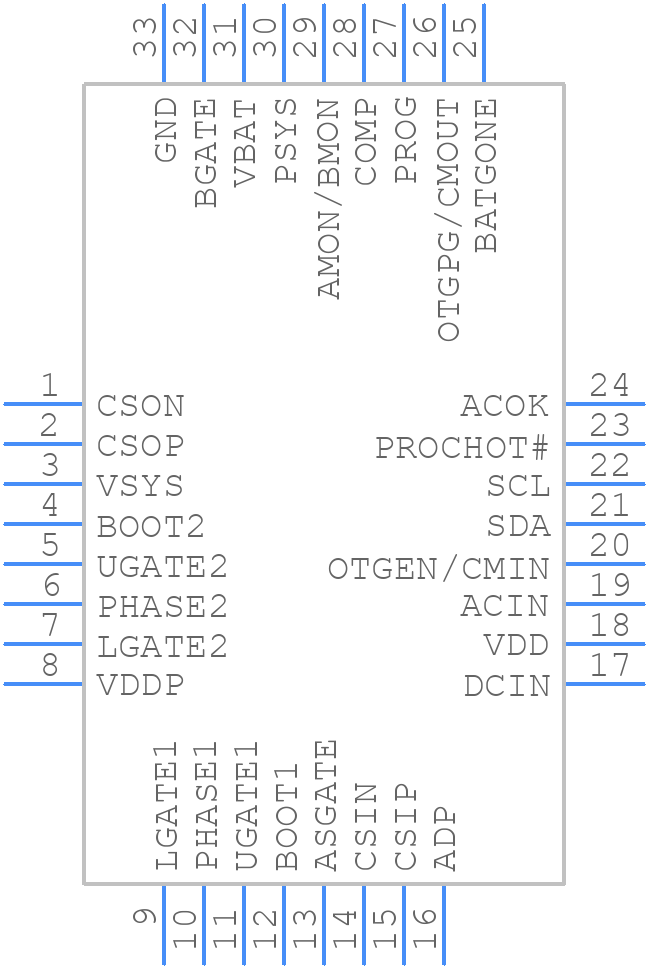

ISL9237HRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL9237HRZ - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L32.4x4A 32 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom
3D Models
ISL9237HRZ - Renesas Electronics - 3D model - Quad Flat No-Lead - L32.4x4A 32 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom

ISL9237HRZ Details

  • Manufacturer Part Number:

    ISL9237HRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    L32.4X4A

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Additional Feature:

    THERMAL SHUTDOWN:150C

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    23.4 V

  • Supply Voltage-Min (Vsup):

    3.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    8

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ISL9237HRZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ISL9237HRZ involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The selection of external components for the ISL9237HRZ depends on the specific application requirements, such as the input voltage, output voltage, and output current. Renesas provides a component selection guide in the datasheet, which can be used as a starting point. Additionally, online tools such as the Renesas PowerNavigator software can be used to simulate and optimize the component selection.
  • The ISL9237HRZ can operate in ambient temperatures up to 105°C, but the maximum junction temperature (TJ) should not exceed 125°C. It's recommended to use thermal management techniques, such as heat sinks or thermal pads, to keep the junction temperature within the specified range.
  • The ISL9237HRZ has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The OCP threshold can be set by selecting the appropriate resistor value. Additionally, the ISL9237HRZ also has a hiccup mode that can be enabled to limit the output current during an overcurrent event.
  • Yes, the ISL9237HRZ is a high-reliability device that is suitable for use in automotive and aerospace applications. It is AEC-Q100 qualified and meets the requirements of various industry standards, such as ISO 26262 and DO-254. However, it's recommended to consult with Renesas and perform additional testing and validation to ensure that the device meets the specific requirements of the application.
