ISL9241HRTZ-T7A - Renesas Electronics

Description: The ISL9241 is a digitally configurable buck-boost battery charger that can support both Narrow Voltage Direct Charging (NVDC) and Hybrid Power Buck-Boost (HPBB/Bypass) charging and switch between the modes using firmware control. Bypass mode is also supported using the firmware of the controller, which allows the adapter to provide power directly to the system. The ISL9241 provides charging functionality, system bus regulation, and protection features using only NFETs for tablet, Ultrabook, and notebook pl

Download ISL9241HRTZ-T7A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

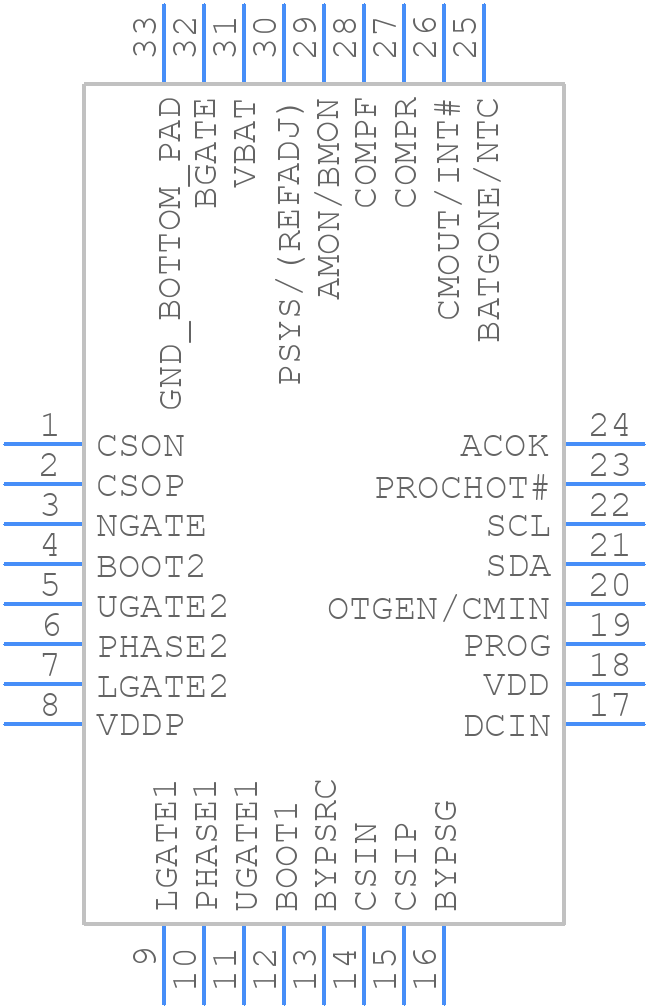

ISL9241HRTZ-T7A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL9241HRTZ-T7A - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L32.4x4D 32 LEAD THIN QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom
3D Models
ISL9241HRTZ-T7A - Renesas Electronics - 3D model - Quad Flat No-Lead - L32.4x4D 32 LEAD THIN QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom

ISL9241HRTZ-T7A Details

  • Manufacturer Part Number:

    ISL9241HRTZ-T7A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Pin Count:

    32

  • Manufacturer Package Code:

    L32.4X4D

  • Country Of Origin:

    Malaysia, Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-12-10

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Package Body Material:

    UNSPECIFIED

  • Package Equivalence Code:

    LCC32(UNSPEC)

  • Package Shape:

    SQUARE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    23.4 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

ISL9241HRTZ-T7A Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
  • Ensure proper thermal design, use a low-ESR output capacitor, and follow the recommended PCB layout guidelines. Also, consider using a thermistor or thermocouple to monitor the temperature.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this may affect the converter's stability and reliability.
  • While possible, it's not recommended. The recommended inductor value and type are optimized for the converter's performance and efficiency. Using a different inductor may affect the converter's stability and efficiency.
  • Check the input voltage, output load, and feedback resistors. Verify that the feedback pin is properly connected and that the output voltage is within the specified range. Consult the datasheet and application notes for troubleshooting guidelines.
