ISL9241HRTZ-TK - Renesas Electronics

Description: The ISL9241 is a digitally configurable buck-boost battery charger that can support both Narrow Voltage Direct Charging (NVDC) and Hybrid Power Buck-Boost (HPBB/Bypass) charging and switch between the modes using firmware control. Bypass mode is also supported using the firmware of the controller, which allows the adapter to provide power directly to the system. The ISL9241 provides charging functionality, system bus regulation, and protection features using only NFETs for tablet, Ultrabook, and notebook pl

Download ISL9241HRTZ-TK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

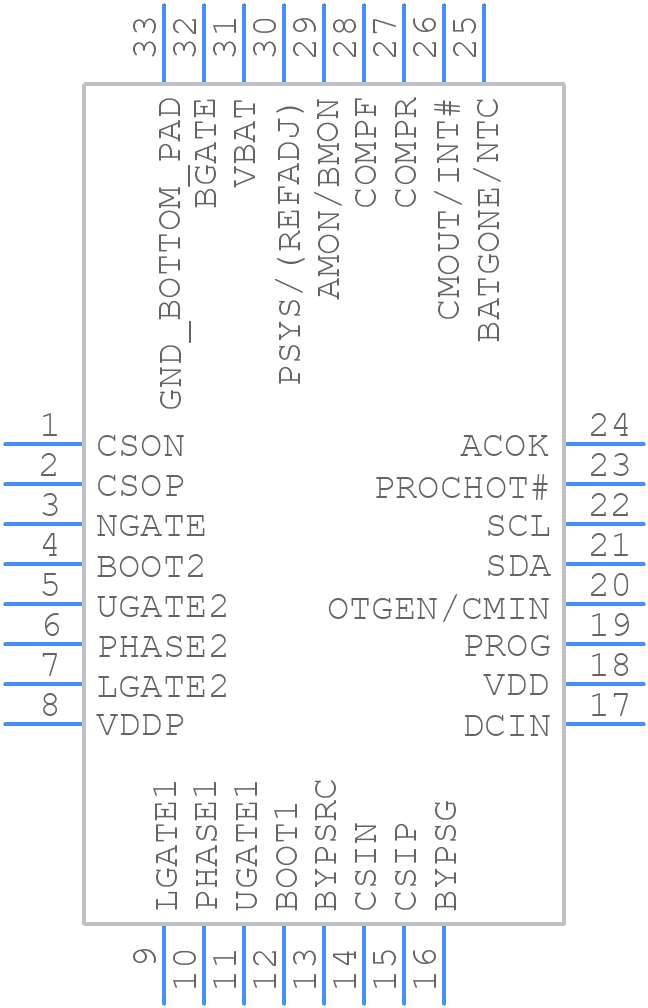

ISL9241HRTZ-TK - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL9241HRTZ-TK - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L32.4x4D 32 LEAD THIN QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom
3D Models
ISL9241HRTZ-TK - Renesas Electronics - 3D model - Quad Flat No-Lead - L32.4x4D 32 LEAD THIN QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom

ISL9241HRTZ-TK Details

  • Manufacturer Part Number:

    ISL9241HRTZ-TK

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Pin Count:

    32

  • Manufacturer Package Code:

    L32.4X4D

  • Country Of Origin:

    Malaysia, Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-12-10

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Package Body Material:

    UNSPECIFIED

  • Package Equivalence Code:

    LCC32(UNSPEC)

  • Package Shape:

    SQUARE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max (Vsup):

    23.4 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

ISL9241HRTZ-TK Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane and ensure good thermal conductivity to the surrounding components.
  • Use a low-ESR output capacitor (e.g., ceramic or polymer) and ensure the capacitor is placed close to the output pins. Additionally, use a low-inductance layout and minimize the loop area to reduce the ripple.
  • The maximum input voltage is 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • Ensure the input voltage is stable and within the recommended range before enabling the device. Also, add a soft-start capacitor (e.g., 10nF) to the EN pin to prevent inrush currents.
  • Use a low-ESR capacitor (e.g., ceramic or polymer) with a value between 10uF to 22uF. The capacitor should be placed close to the VIN pin and have a voltage rating of at least 30V.
