Description:The ISL9241 is a digitally configurable buck-boost battery charger that can support both Narrow Voltage Direct Charging (NVDC) and Hybrid Power Buck-Boost (HPBB/Bypass) charging and switch between the modes using firmware control. Bypass mode is also supported using the firmware of the controller, which allows the adapter to provide power directly to the system. The ISL9241 provides charging functionality, system bus regulation, and protection features using only NFETs for tablet, Ultrabook, and notebook pl
Renesas provides a recommended PCB layout guide in the ISL9241IRTZ evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
Renesas provides a component selection guide in the ISL9241IRTZ datasheet, which includes formulas and guidelines for selecting the correct inductor, capacitors, and resistors based on the specific application requirements and operating conditions.
The ISL9241IRTZ has an operating ambient temperature range of -40°C to +105°C. The device's performance may be affected at higher temperatures, with reduced efficiency and increased power losses. It is recommended to follow the thermal management guidelines in the datasheet to ensure optimal performance.
The ISL9241IRTZ has built-in overcurrent protection and short-circuit protection features. The device can be configured to detect overcurrent and short-circuit conditions, and respond by shutting down the output or limiting the current. The specific implementation details can be found in the datasheet and application notes.
The recommended input voltage range for the ISL9241IRTZ is 2.7V to 5.5V. Operating outside of this range may affect the device's performance, including reduced efficiency, increased power losses, and potential damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL9241IRTZ Overview

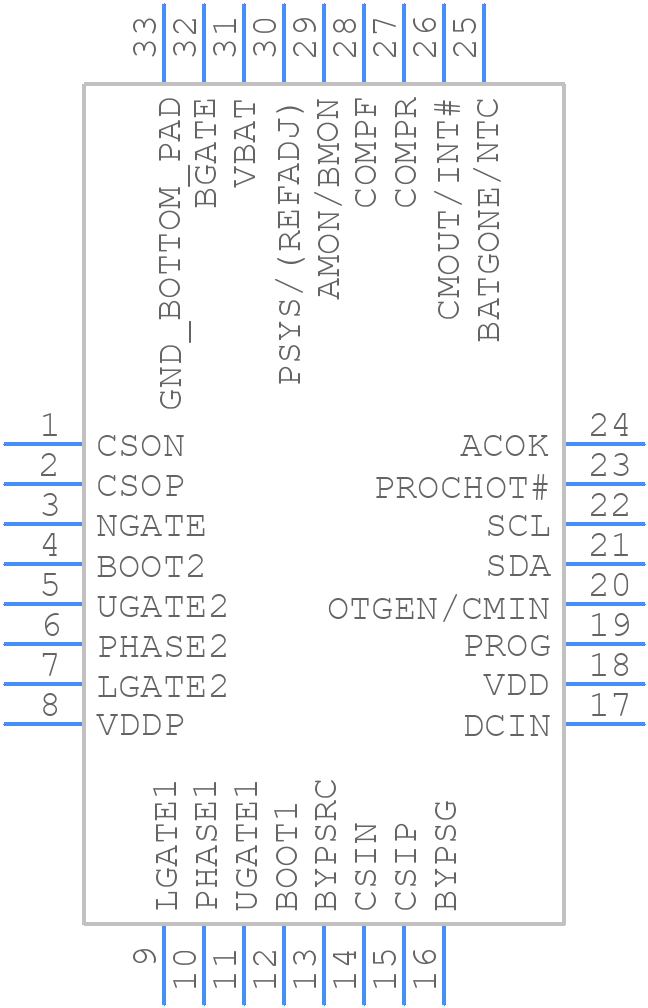

Use the download button to access the ISL9241IRTZ schematic symbol, PCB footprint, and 3D model.
