ISO1042BQDWVRQ1 - Texas Instruments

Description: CAN Interface IC ISO1042BQDWV/RQ1 - M.2 TCAN1042 AUTOB

Download ISO1042BQDWVRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

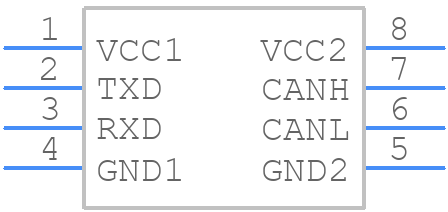

Symbol
ISO1042BQDWVRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO1042BQDWVRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8-1
click to zoom
3D Models
ISO1042BQDWVRQ1 - Texas Instruments - 3D model - Small Outline Packages - SOIC-8-1
click to zoom

ISO1042BQDWVRQ1 Details

  • Manufacturer Part Number:

    ISO1042BQDWVRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

ISO1042BQDWVRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a common mode filter and a shielded cable for the CAN bus.
  • Use a shielded enclosure, ensure proper grounding, and follow the recommended PCB layout. Also, use a common mode filter and a shielded cable for the CAN bus. Consider adding a ferrite bead or a common mode choke to the CAN bus lines.
  • The maximum cable length for the CAN bus depends on the baud rate and the specific application. As a general guideline, the maximum cable length is 40 meters at 1 Mbps and 10 meters at 10 Mbps. However, it's recommended to consult the CAN bus specification and perform signal integrity analysis for the specific application.
  • The ISO1042BQDWVRQ1 has built-in error detection and fault handling mechanisms. Use the error flags and fault indicators to detect and respond to errors. Implement a watchdog timer and a reset mechanism to recover from faults. Consult the datasheet and application notes for more information.
  • The recommended power-up sequence is to power up the VCC supply first, followed by the VIO supply. Ensure that the VCC supply is stable before powering up the VIO supply. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISO1042BQDWVRQ1 Overview

Use the download button to access the ISO1042BQDWVRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO10, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
