ISO5852SDW - Texas Instruments

Description: 5.7 kVrms Split O/P, Reinforced Isolated IGBT Gate Driver

Download ISO5852SDW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

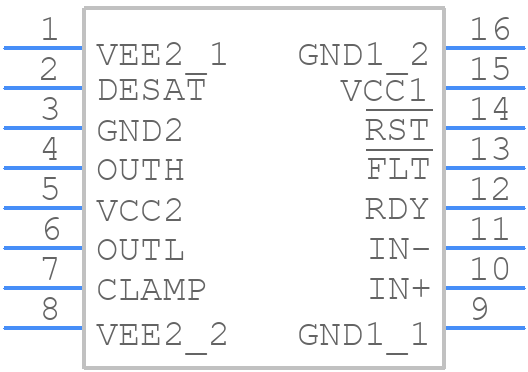

Symbol
ISO5852SDW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO5852SDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B
click to zoom
3D Models
ISO5852SDW - Texas Instruments - 3D model - Small Outline Packages - DW0016B
click to zoom

ISO5852SDW Details

  • Manufacturer Part Number:

    ISO5852SDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRED VEE2 SUPPLY -15V TO 0V

  • High Side Driver:

    NO

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    AND GATE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    5 A

  • Output Peak Current Limit-Nom:

    2.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    4.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.11 µs

  • Turn-on Time:

    0.11 µs

  • Width:

    7.5 mm

ISO5852SDW Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a common mode choke or a ferrite bead to filter the power supply.
  • Use a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device. Consider using a thermally conductive material for the PCB. Operate the device within the recommended temperature range (-40°C to 125°C).
  • Use a pi-filter (L-C-R) or a common mode choke with a capacitor to filter the input. The filter should be designed to attenuate noise and electromagnetic interference (EMI) in the frequency range of interest.
  • Check the power supply voltage and ensure it is within the recommended range. Verify the input signal is within the specified range and frequency. Check for proper PCB layout and grounding. Use an oscilloscope to monitor the input and output signals. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the ISO5852SDW can be used in safety-critical applications. However, ensure that the device is used within its specified operating conditions and that the system is designed to meet the required safety standards (e.g., IEC 61508, ISO 26262). Implement redundant systems, error detection, and correction mechanisms as needed.
