Texas Instruments provides a recommended PCB layout in the application note SLUA645, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To handle high voltage stress during startup, it is recommended to use a soft-start circuit or a voltage supervisor to limit the inrush current and ensure a controlled voltage ramp-up. Additionally, the device's built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features can help protect the device from voltage transients.
The maximum allowed capacitive load on the output of the ISO6520REUR is not explicitly stated in the datasheet. However, according to Texas Instruments' application note SLUA645, a capacitive load of up to 10nF is recommended to ensure stable operation. Exceeding this value may lead to oscillations or instability.
The ISO6520REUR is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's output current and voltage according to the thermal derating curve provided in the datasheet to ensure reliable operation in high-temperature environments.
To ensure EMC with the ISO6520REUR, follow the recommended PCB layout and design guidelines in the application note SLUA645. Additionally, use shielding, filtering, and grounding techniques to minimize electromagnetic radiation and susceptibility. Texas Instruments also provides an EMC-compliant evaluation module (EVM) for the ISO6520REUR, which can serve as a reference design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO6520REUR Overview

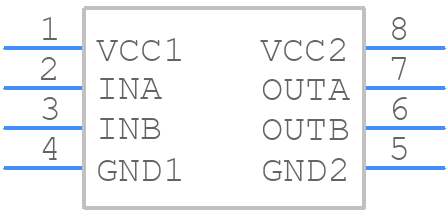

Use the download button to access the ISO6520REUR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO65,
or try a keyword search, such as Other Interface ICs
