ISO6721FQDWVRQ1 - Texas Instruments

Description: Digital Isolators Automotive, general-purpose, dual-channel, 1/1 digital isolator

Download ISO6721FQDWVRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

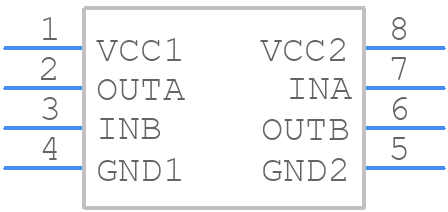

ISO6721FQDWVRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO6721FQDWVRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWV Package 8-Pin SOIC
click to zoom
3D Models
ISO6721FQDWVRQ1 - Texas Instruments - 3D model - Small Outline Packages - DWV Package 8-Pin SOIC
click to zoom

ISO6721FQDWVRQ1 Details

  • Manufacturer Part Number:

    ISO6721FQDWVRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRE SUPPLY FROM 2.25V TO 5.5V

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.45

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

ISO6721FQDWVRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a common mode filter and a shielded cable for the analog input.
  • Use a shielded enclosure, keep the device away from high-frequency sources, and use a common mode filter on the analog input. Ensure the PCB layout is optimized for EMC, and use a ferrite bead or a common mode choke on the power supply lines.
  • Power up the device in the following sequence: VCC, VDD, and then the analog input. Ensure the power supplies are stable before applying the analog input signal.
  • Use a heat sink with a thermal conductivity of at least 1 W/m-K. Ensure good airflow around the device, and avoid blocking the airflow with components or obstacles.
  • Use a low-pass filter with a cutoff frequency of 100 kHz to 1 MHz to remove high-frequency noise. Ensure the input signal is within the specified range and has a common mode voltage within the allowed range.
