The maximum operating temperature range for the ISO6740DWR is -40°C to 125°C, but it can be extended to 150°C with some limitations. It's essential to check the thermal design and derating factors to ensure reliable operation.
To ensure EMC, follow proper PCB design and layout guidelines, use a shielded enclosure, and implement filtering and shielding techniques. Additionally, consider using a common-mode choke and TVS diodes to protect against electromagnetic interference (EMI).
For optimal performance, follow Texas Instruments' recommended layout and routing guidelines, which include keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops. A 4-layer PCB with a dedicated power plane is recommended.
To prevent damage or malfunction, ensure that the power-up and power-down sequencing follows the recommended order: VCC, VISO, and then VIN. During power-down, reverse the sequence. Additionally, use a soft-start circuit to limit inrush current and prevent voltage drops.
To prevent electrostatic discharge (ESD) damage, handle the device in an ESD-protected environment, use ESD-protected tools and equipment, and follow proper handling and storage procedures. Ensure that the device is properly grounded during assembly and testing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO6740DWR Overview

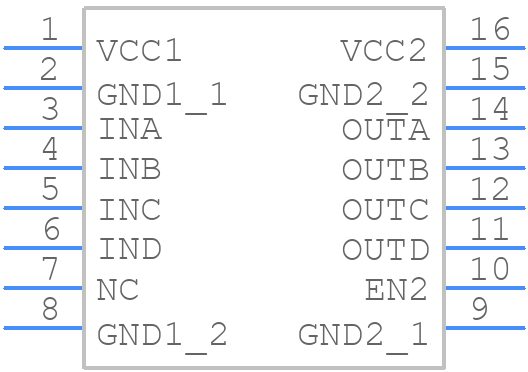

Use the download button to access the ISO6740DWR schematic symbol, PCB footprint, and 3D model.
