Texas Instruments provides a recommended PCB layout in the application note SLAA701, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The datasheet recommends using a 1.0 μF to 10 μF decoupling capacitor between the VCC and GND pins, and a 0.1 μF to 1.0 μF decoupling capacitor between the VISO and GND pins. Additionally, ensure that the power supply is stable and within the recommended operating range.
The maximum cable length supported by the ISO7142CCQDBQQ1 depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends keeping the cable length as short as possible (less than 1 meter) to minimize signal degradation and ensure reliable operation.
Texas Instruments provides a troubleshooting guide in the application note SLAA702, which includes steps to identify and resolve common issues, such as signal integrity problems, communication errors, and power supply-related issues.
The ISO7142CCQDBQQ1 is designed to be compatible with a wide range of Texas Instruments devices and third-party components. However, it's essential to verify compatibility and ensure that the specific components used meet the recommended operating conditions and specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7142CCQDBQQ1 Overview

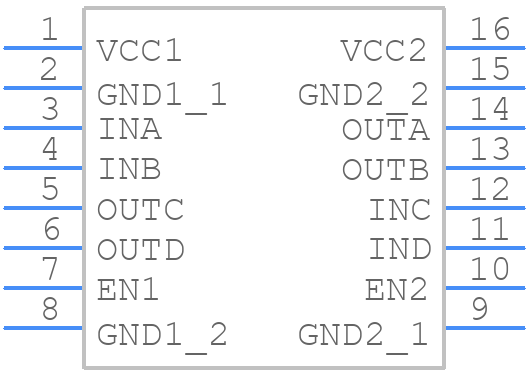

Use the download button to access the ISO7142CCQDBQQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO71,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
