ISO7220AD - Texas Instruments

Description: Dual Channel, 2/0, 1Mbps Digital Isolator

Download ISO7220AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

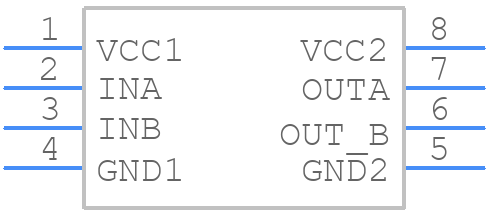

ISO7220AD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO7220AD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
ISO7220AD - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

ISO7220AD Details

  • Manufacturer Part Number:

    ISO7220AD

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    IEC 62368-1

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

ISO7220AD Frequently Asked Questions (FAQs)

  • The maximum data rate of the ISO7220AD is 100 Mbps, but it can be limited by the specific application and system design.
  • To minimize EMI, use proper PCB layout techniques, such as separating analog and digital grounds, using shielding, and keeping signal traces short and away from noise sources. Additionally, use a common-mode filter or a ferrite bead to reduce EMI.
  • The recommended power-up sequence is to apply VCC first, followed by VISO, and then the input signals. This ensures proper internal biasing and prevents latch-up or damage to the device.
  • The ISO7220AD is a 5-V device, but it can be used with 3.3-V or 2.5-V systems. Use level translators or voltage dividers to match the voltage levels between domains, ensuring signal integrity and preventing damage to the device.
  • The ISO7220AD has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and avoid overheating by keeping the device away from heat sources and using a proper thermal interface material.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ISO7220AD Overview

Use the download button to access the ISO7220AD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO72, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
