ISO7221AQDRQ1 - Texas Instruments

Description: Automotive Catalog Dual Channel, 1/1, 1Mbps Digital Isolator

Download ISO7221AQDRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

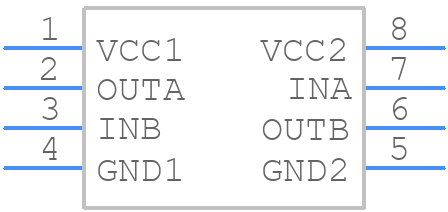

ISO7221AQDRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO7221AQDRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
ISO7221AQDRQ1 - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

ISO7221AQDRQ1 Details

  • Manufacturer Part Number:

    ISO7221AQDRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ISO7221AQDRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 0.1uF decoupling capacitor between VCC and GND, and a 10uF capacitor between VCC and AVCC.
  • Use a common mode choke or a ferrite bead to filter out high-frequency noise on the communication lines. Ensure that the signal lines are properly terminated, and use a shielded cable to reduce electromagnetic interference (EMI).
  • The maximum cable length depends on the specific application and the type of cable used. As a general guideline, the ISO7221AQDRQ1 can support cable lengths up to 100 meters (330 feet) for a single-ended interface and up to 300 meters (980 feet) for a differential interface.
  • Power up the VCC pin first, followed by the AVCC pin. When powering down, reverse the sequence. Ensure that the power supply voltage is stable and within the recommended range before applying it to the device.
  • The ISO7221AQDRQ1 has a maximum junction temperature of 150°C. Ensure good airflow around the device, and use a heat sink if necessary. Avoid overheating the device, as it can affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISO7221AQDRQ1 Overview

Use the download button to access the ISO7221AQDRQ1 schematic symbol, PCB footprint, and 3D model.
