ISO7221BDRG4 - Texas Instruments

Description: Digital Isolators Dual Channel 1/1 5Mbps Dig Isolator

Download ISO7221BDRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

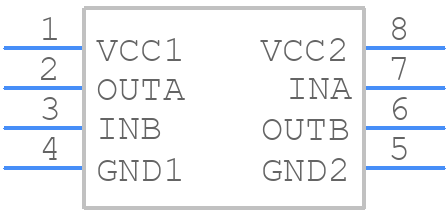

ISO7221BDRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO7221BDRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
ISO7221BDRG4 - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

ISO7221BDRG4 Details

  • Manufacturer Part Number:

    ISO7221BDRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    IEC 62368-1

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

ISO7221BDRG4 Frequently Asked Questions (FAQs)

  • The maximum data rate is 100 Mbps, but it can be limited by the capacitance of the isolation barrier and the signal integrity of the system.
  • To ensure reliable operation, follow the recommended layout and routing guidelines, use a low-ESR capacitor for the VCC1 and VCC2 pins, and ensure the input signals are within the recommended voltage range.
  • The EN (Enable) pin is used to enable or disable the device. When EN is low, the device is in shutdown mode, and when EN is high, the device is enabled. Use the EN pin to control power consumption or to implement a reset function.
  • Follow the recommended power-up and power-down sequences to ensure proper operation. Power up VCC1 and VCC2 simultaneously, and power down VCC1 and VCC2 simultaneously to prevent latch-up.
  • Keep the signal traces short and away from noise sources, use a solid ground plane, and ensure the isolation barrier is not compromised by the PCB layout.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISO7221BDRG4 Overview

Use the download button to access the ISO7221BDRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO72, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
