ISO7310CD - Texas Instruments

Description: Robust EMC, Low Power, Single-Channel 1/0 Digital Isolator, Fail-Safe High

Download ISO7310CD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

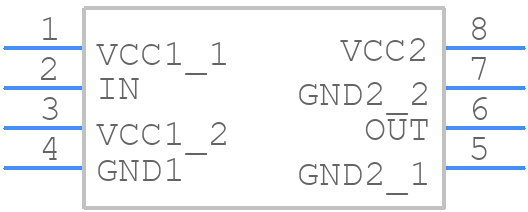

ISO7310CD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO7310CD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - ISO7310CD
click to zoom
3D Models
ISO7310CD - Texas Instruments - 3D model - Small Outline Packages - ISO7310CD
click to zoom

ISO7310CD Details

  • Manufacturer Part Number:

    ISO7310CD

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    IEC 60950-1; IEC 60601-1

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

ISO7310CD Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ISO7310CD is -40°C to 125°C.
  • To ensure reliable operation in high-voltage applications, it is recommended to follow proper PCB layout and design guidelines, use adequate isolation and creepage distances, and ensure that the device is operated within its specified voltage ratings.
  • Yes, the ISO7310CD can be used in high-frequency applications up to 100 MHz. However, it is recommended to follow proper PCB layout and design guidelines to minimize signal reflections and ensure reliable operation.
  • The ISO7310CD has built-in ESD protection, but it is still recommended to follow proper ESD handling and storage procedures to prevent damage to the device.
  • Yes, the ISO7310CD is designed to meet the requirements of safety-critical applications, such as IEC 60601-1 and IEC 61508. However, it is recommended to follow proper design and testing procedures to ensure compliance with relevant safety standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISO7310CD Overview

Use the download button to access the ISO7310CD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO73, or try a keyword search, such as Other Interface ICs
