Texas Instruments provides a recommended PCB layout in the application note SLUA645, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The ISO7310CQDRQ1 requires a stable power supply with adequate decoupling to ensure reliable operation. TI recommends using a low-ESR capacitor (e.g., 0.1 μF) close to the device's power pins, and a bulk capacitor (e.g., 10 μF) farther away from the device. Additionally, ensure that the power supply voltage is within the recommended range of 2.25 V to 5.5 V.
The ISO7310CQDRQ1 is designed to support cable lengths up to 100 meters (328 feet) at a data rate of 100 Mbps. However, the actual cable length may vary depending on the specific application, cable quality, and environmental conditions. TI recommends consulting the application note SLUA645 for more information on cable length and signal integrity.
TI recommends using a logic analyzer or oscilloscope to capture and analyze the signal waveforms at the input and output of the ISO7310CQDRQ1. This can help identify issues such as signal attenuation, jitter, or noise. Additionally, consult the device's datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
While the ISO7310CQDRQ1 and ISO7241CQDRQ1 share some similarities, they are not pin-to-pin compatible. The ISO7310CQDRQ1 has a different pinout and is designed for specific applications, such as industrial automation and medical devices. Consult the datasheets and application notes for each device to ensure compatibility and proper usage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7310CQDRQ1 Overview

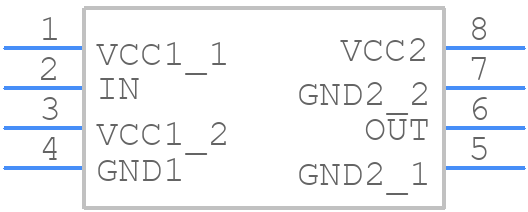

Use the download button to access the ISO7310CQDRQ1 schematic symbol, PCB footprint, and 3D model.
