The maximum junction temperature of the ISO7310FCD is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
To ensure proper isolation, make sure to follow the recommended PCB layout and creepage distance guidelines provided in the datasheet. Additionally, use a suitable isolation barrier, such as a slot or a gap, between the input and output circuits to prevent electrical conduction.
The maximum common-mode transient immunity of the ISO7310FCD is 50 kV/μs, as specified in the datasheet. This means the device can withstand high-frequency transients and electromagnetic interference (EMI) without compromising its isolation performance.
Yes, the ISO7310FCD is designed to operate in high-voltage applications up to 5.7 kVrms. However, it's essential to ensure that the device is properly rated for the specific voltage and application requirements.
To troubleshoot issues with the ISO7310FCD, start by verifying the device's power supply and input/output connections. Check for any signs of physical damage, overheating, or electrical overstress. Use an oscilloscope to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7310FCD Overview

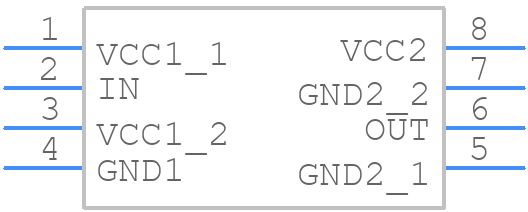

Use the download button to access the ISO7310FCD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO73,
or try a keyword search, such as Other Interface ICs
