Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure reliable operation across the entire temperature range (-40°C to 125°C), it's crucial to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider using thermal management techniques, such as heat sinks or thermal pads, to maintain a safe junction temperature.
The maximum allowable voltage on the input pins is 6.5V, which is higher than the recommended operating voltage of 5V. However, it's essential to ensure that the input voltage does not exceed 6.5V to prevent damage to the device.
Yes, the ISO7330FCDWR is suitable for high-speed applications up to 100 Mbps. However, it's essential to follow proper PCB layout and signal integrity guidelines to minimize signal degradation and ensure reliable operation at high speeds.
The ISO7330FCDWR has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing, assembly, and testing to prevent damage to the device. Additionally, consider using external ESD protection devices, such as TVS diodes, to provide additional protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7330FCDWR Overview

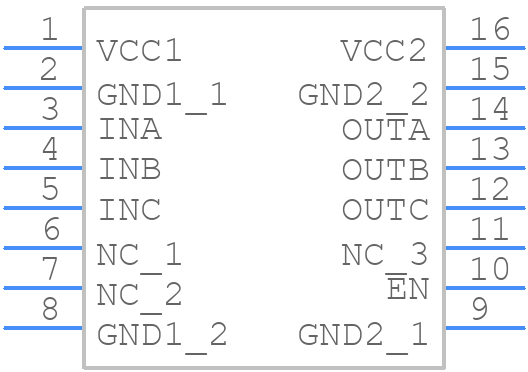

Use the download button to access the ISO7330FCDWR schematic symbol, PCB footprint, and 3D model.
