Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing trace lengths. Additionally, use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation at high temperatures, follow the recommended operating conditions, use a suitable thermal interface material, and ensure good heat dissipation. The device is rated for operation up to 125°C, but it's essential to consider the junction temperature (TJ) and ensure it remains within the specified range.
The maximum cable length supported by the ISO7330FCQDWQ1 depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 100 meters, but it's essential to consider the signal attenuation, noise, and impedance matching to ensure reliable operation.
To troubleshoot common issues, start by reviewing the PCB layout and ensuring it meets the recommended guidelines. Check for signal integrity issues by analyzing the signal waveform and frequency spectrum. Use oscilloscopes and signal analyzers to identify noise sources and take corrective action, such as adding filters or shielding.
To ensure EMI and RFI compliance, follow the recommended PCB layout and shielding guidelines. Use a metal shield or a shielded enclosure to reduce electromagnetic radiation. Ensure proper grounding and decoupling, and consider using EMI filters or common-mode chokes to reduce emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7330FCQDWQ1 Overview

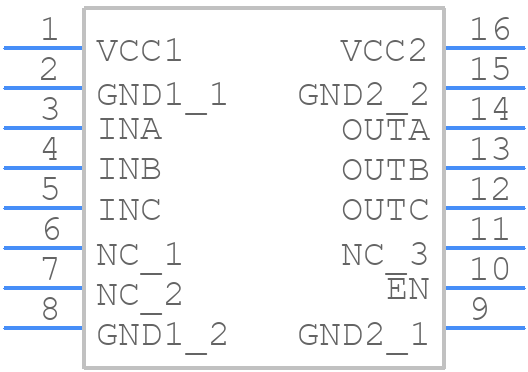

Use the download button to access the ISO7330FCQDWQ1 schematic symbol, PCB footprint, and 3D model.
