ISO7640FMDW - Texas Instruments

Description: 6kVpk Low Power Quad Channels, 150Mbps Digital Isolators

Download ISO7640FMDW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

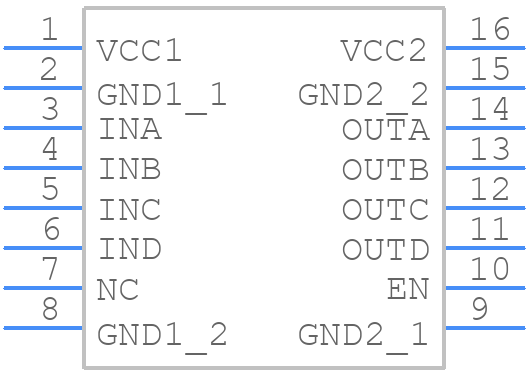

ISO7640FMDW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO7640FMDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G16)
click to zoom
3D Models
ISO7640FMDW - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G16)
click to zoom

ISO7640FMDW Details

  • Manufacturer Part Number:

    ISO7640FMDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ISO7640FMDW Frequently Asked Questions (FAQs)

  • The maximum data rate is 100 Mbps, but it can be limited by the capacitance of the isolation barrier and the signal integrity of the system.
  • Ensure proper thermal management, use a heat sink if necessary, and follow the recommended operating conditions to prevent overheating, which can affect reliability.
  • Follow the recommended PCB layout guidelines in the datasheet, keep the isolation barrier as short as possible, and use a solid ground plane to minimize noise and ensure optimal performance.
  • Yes, the ISO7640FMDW is suitable for safety-critical applications, but ensure compliance with relevant safety standards (e.g., IEC 61508), and consider implementing redundant systems and fail-safe mechanisms.
  • Use oscilloscopes and logic analyzers to debug signal integrity issues, check for proper power supply and decoupling, and consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISO7640FMDW Overview

Use the download button to access the ISO7640FMDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO76, or try a keyword search, such as Other Interface ICs
