ISO7710FQDWRQ1 - Texas Instruments

Description: Digital Isolator Logic 1-CH 100Mbps Automotive 16-Pin SOIC T/R

Download ISO7710FQDWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

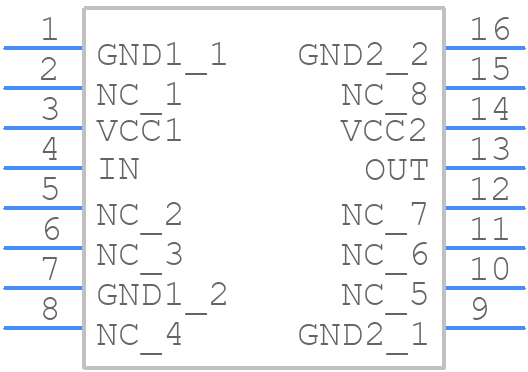

ISO7710FQDWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO7710FQDWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G16)
click to zoom
3D Models
ISO7710FQDWRQ1 - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G16)
click to zoom

ISO7710FQDWRQ1 Details

  • Manufacturer Part Number:

    ISO7710FQDWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-03-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ISO7710FQDWRQ1 Frequently Asked Questions (FAQs)

  • The maximum voltage rating for the ISO7710FQDWRQ1 is 5600 Vrms for 1 minute, and 1500 Vrms for continuous operation.
  • To ensure reliable operation, it's essential to follow the recommended operating temperature range (-40°C to 125°C) and consider thermal management techniques, such as heat sinking or thermal interface materials, to keep the junction temperature within the specified range.
  • The typical propagation delay for the ISO7710FQDWRQ1 is around 10 ns, but this can vary depending on the specific application, operating conditions, and output load.
  • While the ISO7710FQDWRQ1 is suitable for high-frequency applications, its performance may degrade above 100 kHz. For frequencies above 100 kHz, consider using a more specialized isolator or consulting with a Texas Instruments application engineer.
  • To prevent ESD damage, follow proper handling and storage procedures, use ESD-protective equipment, and consider adding external ESD protection devices, such as TVS diodes, to your design.
