ISO7721BDW - Texas Instruments

Description: High-speed, robust EMC basic insulation dual-channel digital isolator

Download ISO7721BDW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

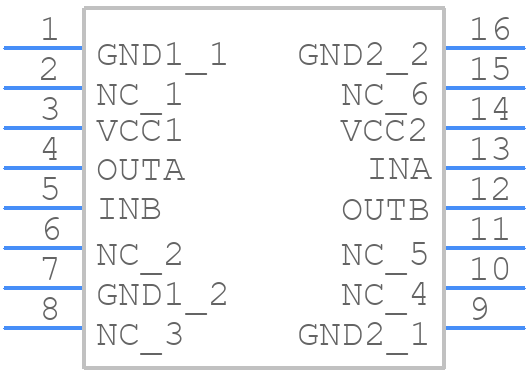

Symbol
ISO7721BDW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO7721BDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B
click to zoom
3D Models
ISO7721BDW - Texas Instruments - 3D model - Small Outline Packages - DW0016B
click to zoom

ISO7721BDW Details

  • Manufacturer Part Number:

    ISO7721BDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-04-27

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ISO7721BDW Frequently Asked Questions (FAQs)

  • The maximum data rate of the ISO7721BDW is 100 Mbps, but it can be limited by the capacitance of the isolation barrier and the signal integrity of the system.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper PCB design and layout guidelines, provide adequate heat sinking, and consider the device's junction temperature (TJ) rating of 150°C.
  • TI recommends using a 10-μF ceramic capacitor and a 1-μF ceramic capacitor in parallel, placed as close as possible to the VCC and GND pins, to ensure proper power supply decoupling and noise reduction.
  • Yes, the ISO7721BDW can be used in a multi-point isolation configuration, but it's essential to follow TI's application notes and guidelines to ensure proper isolation and signal integrity.
  • To troubleshoot common issues, start by verifying the power supply and decoupling, checking the signal integrity and termination, and ensuring proper PCB design and layout. TI also provides a troubleshooting guide and application notes to help resolve common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISO7721BDW Overview

Use the download button to access the ISO7721BDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO77, or try a keyword search, such as Other Interface ICs
