Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the signal traces short, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the device is placed near the isolation barrier to reduce noise.
To ensure reliable operation across the entire temperature range (-40°C to 125°C), follow the recommended operating conditions, and consider the device's thermal characteristics. Ensure proper thermal management, such as using a heat sink or thermal pad, and avoid exceeding the maximum junction temperature (Tj).
In high-vibration environments, the device's reliability may be affected. Texas Instruments recommends following the recommended soldering and assembly procedures to ensure the device is securely attached to the PCB. Additionally, consider using a vibration-resistant mounting method, such as a screw-down or adhesive-based attachment.
To troubleshoot issues with the digital interface, start by verifying the clock frequency, data transmission rate, and signal integrity. Check the device's datasheet for specific timing requirements and ensure the interface is properly terminated. Use an oscilloscope or logic analyzer to inspect the signal waveforms and identify any errors or anomalies.
The ISO7730FQDWRQ1 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Ensure the device is handled in an ESD-controlled environment, and use ESD-protective packaging and materials.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7730FQDWRQ1 Overview

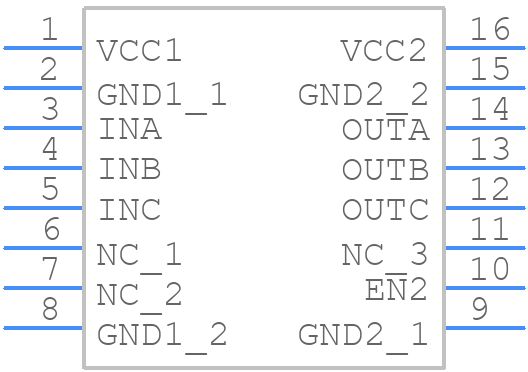

Use the download button to access the ISO7730FQDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO77,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
