ALSO REQUIRED VCC2 2.25-5.5V SUPPLY; ALSO OPERATE WITH 3.3V AND 5V SUPPLY
Interface IC Type:
DIGITAL ISOLATOR
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
4.905 mm
Moisture Sensitivity Level:
2
Number of Channels:
6
Number of Functions:
6
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.75 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.25 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.895 mm
ISO7761QDBQRQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the signal traces short, using a solid ground plane, and minimizing noise coupling. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation over the entire operating temperature range (-40°C to 125°C), it's crucial to follow proper thermal management practices, such as providing adequate heat sinking, using thermal vias, and selecting components with suitable temperature ratings. Additionally, ensure that the device is operated within its specified power dissipation limits.
To mitigate EMI and RFI, it's essential to follow good design practices, such as using a shielded enclosure, keeping the device away from noise sources, using ferrite beads or chokes on the power lines, and ensuring that the PCB layout is optimized for low emissions. Additionally, consider using EMI filters or shielding on the input and output lines.
To troubleshoot issues with the ISO7761QDBQRQ1, start by reviewing the datasheet and application notes to ensure that the device is being used within its specified operating conditions. Check the power supply, clock, and input/output signals for any anomalies. Use oscilloscopes or logic analyzers to debug the device's behavior. If the issue persists, consider consulting with Texas Instruments' technical support or seeking assistance from a qualified engineer.
When using the ISO7761QDBQRQ1 in a high-reliability or safety-critical application, it's essential to follow rigorous design and testing procedures to ensure the device's reliability and fault tolerance. Consider implementing redundant systems, error detection and correction mechanisms, and fail-safe defaults. Additionally, ensure that the device is used within its specified operating conditions and that all relevant safety certifications and standards are met.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7761QDBQRQ1 Overview

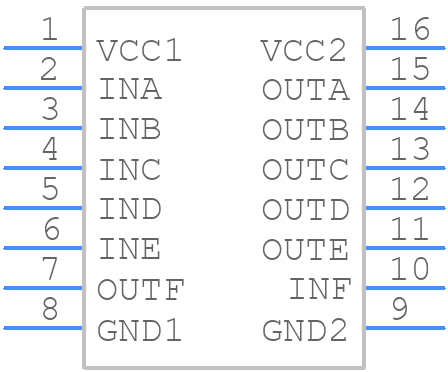

Use the download button to access the ISO7761QDBQRQ1 schematic symbol, PCB footprint, and 3D model.
