ISO7761QDWRQ1 - Texas Instruments

Description: Digital Isolators Automotive, high speed, robust EMC six-channel digital isolator 16-SOIC -40 to 125

Download ISO7761QDWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

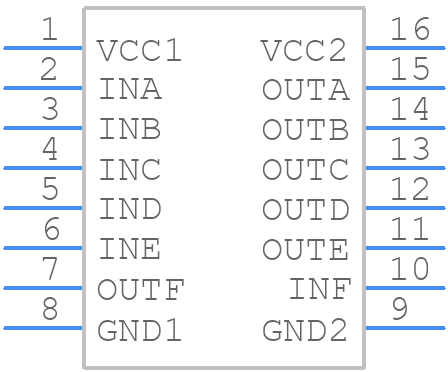

ISO7761QDWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO7761QDWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B_
click to zoom
3D Models
ISO7761QDWRQ1 - Texas Instruments - 3D model - Small Outline Packages - DW0016B_
click to zoom

ISO7761QDWRQ1 Details

  • Manufacturer Part Number:

    ISO7761QDWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-12-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    6

  • Number of Functions:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ISO7761QDWRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10nF capacitor between VCC and GND, and a 100nF capacitor between VCC_ISO and GND_ISO.
  • Use a shielded cable for the ISO7761QDWRQ1's input and output signals. Ensure the PCB layout is designed to minimize electromagnetic radiation. Use a common-mode choke or ferrite bead on the input and output lines to reduce electromagnetic interference (EMI).
  • The maximum cable length depends on the specific application and the type of cable used. As a general guideline, the ISO7761QDWRQ1 can support cable lengths up to 100 meters (328 feet) with a suitable cable and proper termination.
  • Use an oscilloscope to monitor the input and output signals. Check for proper power supply voltage, decoupling, and signal integrity. Verify the PCB layout and component placement. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • The ISO7761QDWRQ1 is rated for operation up to 125°C (257°F). However, the device's performance and reliability may degrade at high temperatures. Ensure proper heat sinking and thermal management to maintain a safe operating temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISO7761QDWRQ1 Overview

Use the download button to access the ISO7761QDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO77, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
