ISO7762FQDWRQ1 - Texas Instruments

Description: Digital Isolators AUTO ISO7762FQDWQ1/R DIG ISO - MYNA -6CH

Download ISO7762FQDWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

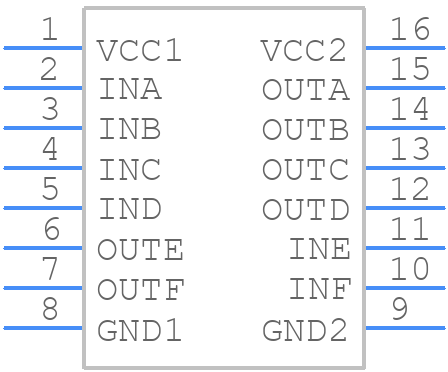

ISO7762FQDWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO7762FQDWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SOIC(16)
click to zoom
3D Models
ISO7762FQDWRQ1 - Texas Instruments - 3D model - Small Outline Packages - SOIC(16)
click to zoom

ISO7762FQDWRQ1 Details

  • Manufacturer Part Number:

    ISO7762FQDWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-12-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRED VCC2 2.25-5.5V SUPPLY; ALSO OPERATE WITH 3.3V AND 5V SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    6

  • Number of Functions:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ISO7762FQDWRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10nF capacitor between VCC and GND for decoupling.
  • Use a shielded cable for the ISO7762FQDWRQ1's output, and ensure the PCB is designed with EMC in mind. Use a common-mode choke or ferrite bead on the output lines to reduce emissions.
  • The maximum cable length depends on the specific application and the type of cable used. As a general guideline, the ISO7762FQDWRQ1 can support cable lengths up to 100 meters. However, it's recommended to consult the datasheet and application notes for specific guidance.
  • Use an oscilloscope to monitor the output signals and check for noise, distortion, or other anomalies. Verify the power supply voltage and ensure it's within the recommended range. Check the PCB layout and ensure it's designed according to the recommended layout guidelines.
  • The ISO7762FQDWRQ1 is rated for operation up to 125°C. However, it's recommended to derate the device's performance at higher temperatures. Consult the datasheet and application notes for specific guidance on high-temperature operation.
