ALSO REQUIRED VCC2 2.25-5.5V SUPPLY; ALSO OPERATE WITH 3.3V AND 5V SUPPLY
Interface IC Type:
DIGITAL ISOLATOR
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
10.3 mm
Moisture Sensitivity Level:
2
Number of Channels:
6
Number of Functions:
6
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
2.65 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.25 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm
ISO7763QDWQ1 Frequently Asked Questions (FAQs)
A good PCB layout for the ISO7763QDWQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range, use a heat sink if necessary, and follow proper thermal design guidelines. Additionally, consider using a thermally-enhanced package option.
To mitigate EMI and RFI, use a shielded enclosure, keep the device away from high-frequency sources, use a common-mode choke, and follow proper PCB layout and grounding techniques. TI provides EMI and RFI mitigation guidelines in the datasheet and application notes.
To troubleshoot issues with the ISO7763QDWQ1, start by reviewing the datasheet and application notes, checking the device's configuration and setup, and using TI's troubleshooting guides and tools. If necessary, contact TI's technical support for further assistance.
When using the ISO7763QDWQ1 in a safety-critical application, ensure that the device is used within its specified operating conditions, follow proper design and verification guidelines, and consider using redundant or fail-safe design techniques. Additionally, consult with TI's safety experts and follow relevant industry standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7763QDWQ1 Overview

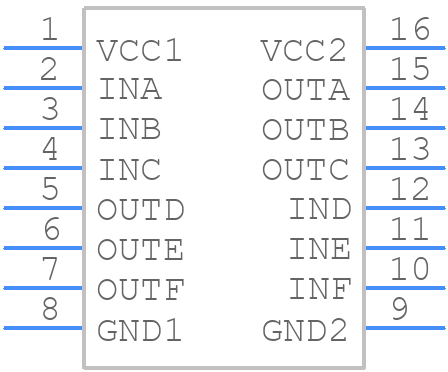

Use the download button to access the ISO7763QDWQ1 schematic symbol, PCB footprint, and 3D model.
