ALSO REQUIRED VCC2 2.25-5.5V SUPPLY; ALSO OPERATE WITH 3.3V AND 5V SUPPLY
Interface IC Type:
DIGITAL ISOLATOR
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
10.3 mm
Moisture Sensitivity Level:
2
Number of Channels:
6
Number of Functions:
6
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
2.65 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.25 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm
ISO7763QDWRQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing loop areas to reduce EMI.
To ensure reliable operation across the entire temperature range (-40°C to 125°C), it's crucial to follow the recommended operating conditions, including voltage and current limits, and to consider the thermal design of the system, including heat sinking and airflow.
The propagation delay of the ISO7763QDWRQ1 (typically around 10 ns) should be considered when designing the system, especially in high-speed applications. This delay can affect the overall system latency and may require adjustments to the system's timing and synchronization.
To ensure proper operation, it's essential to follow the recommended power-up and power-down sequencing, which involves powering up the VCC supply before the input signals and powering down the input signals before the VCC supply.
The ISO7763QDWRQ1 has built-in ESD protection, but it's still important to follow proper ESD handling and storage procedures to prevent damage. Additionally, the device's ESD protection may not be sufficient for all applications, and external ESD protection devices may be required.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7763QDWRQ1 Overview

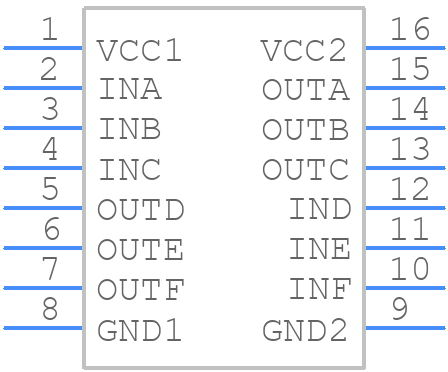

Use the download button to access the ISO7763QDWRQ1 schematic symbol, PCB footprint, and 3D model.
