ALSO REQUIRE VCC2 FROM 2.25 -5.5V; ALSO OPERATE WITH 3.3V AND 5 V SUPPLY
Interface IC Type:
INTERFACE CIRCUIT
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
10.3 mm
Moisture Sensitivity Level:
2
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
2.65 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.25 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm
ISO7810FDWR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The ISO7810FDWR can be configured for different clock frequencies by adjusting the values of the external resistors REXT and RCLK, as described in the datasheet. Additionally, the device can be programmed to use an internal clock source or an external clock source, depending on the application requirements.
The ISO7810FDWR supports data transfer rates up to 1.544 Mbps, making it suitable for high-speed applications such as smart cards and secure authentication systems.
The ISO7810FDWR has built-in error detection and correction mechanisms, including parity checking, cyclic redundancy checking (CRC), and error correction codes. It also has a fault detection mechanism that can detect and report errors, such as framing errors, overrun errors, and parity errors.
Yes, the ISO7810FDWR is designed to be compatible with industry-standard protocols such as ISO/IEC 7816 and EMV, making it suitable for use in a wide range of applications, including smart cards, payment systems, and secure authentication systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7810FDWR Overview

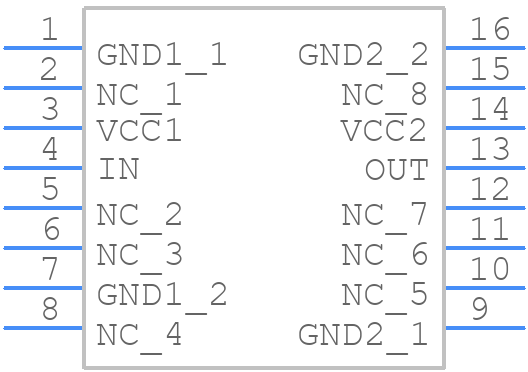

Use the download button to access the ISO7810FDWR schematic symbol, PCB footprint, and 3D model.
