ALSO REQUIRE VCC2 FROM 2.25 -5.5V; ALSO OPERATE WITH 3.3V AND 5 V SUPPLY
Interface IC Type:
INTERFACE CIRCUIT
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Moisture Sensitivity Level:
3
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.25 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
ISO7810FDWW Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The ISO7810FDWW can be configured for I2C or SPI interface by setting the appropriate pins and registers. For I2C, set the SCL and SDA pins as inputs and configure the I2C clock frequency. For SPI, set the SCK, MOSI, and MISO pins as inputs and configure the SPI clock frequency and mode. Refer to the datasheet and application notes for detailed configuration guidelines.
The maximum data transfer rate of the ISO7810FDWW depends on the interface mode. For I2C, the maximum data transfer rate is 400 kHz. For SPI, the maximum data transfer rate is 20 MHz.
The ISO7810FDWW provides error detection and correction mechanisms, such as cyclic redundancy checks (CRC) and error flags. Engineers can use these mechanisms to detect and handle errors and exceptions. Additionally, the device provides interrupt pins to notify the system of errors and exceptions. Refer to the datasheet and application notes for detailed guidelines on error handling.
Yes, the ISO7810FDWW is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and automotive applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7810FDWW Overview

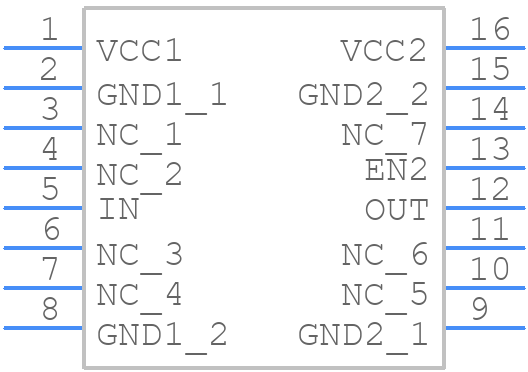

Use the download button to access the ISO7810FDWW schematic symbol, PCB footprint, and 3D model.
