Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing loop areas to reduce EMI.
To ensure reliable operation, it's crucial to follow the recommended operating conditions, including temperature, voltage, and current. Additionally, consider using thermal management techniques, such as heat sinks or thermal pads, to maintain a stable temperature.
While the ISO7820LLDWWR can operate with a voltage supply between 2.7V and 5.5V, using a different voltage supply may affect the device's performance, power consumption, and reliability. Consult the datasheet and application notes for specific guidance on voltage supply considerations.
The ISO7820LLDWWR has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing and assembly. Additionally, ensure that the device is powered up and down correctly to prevent latch-up.
Common failure modes include overvoltage, undervoltage, and overheating. To mitigate these, ensure proper voltage regulation, use overvoltage protection devices, and implement thermal management techniques. Regularly monitor the device's operating conditions and perform failure analysis to identify and address potential issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7820LLDWWR Overview

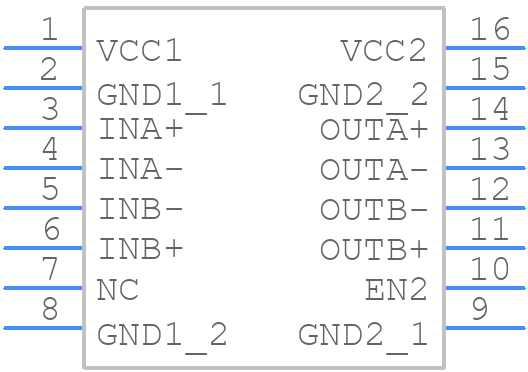

Use the download button to access the ISO7820LLDWWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO78,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
