Texas Instruments provides a recommended PCB layout in the application note SLUA685, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure proper isolation, follow the guidelines in the datasheet for creepage and clearance distances, and use a suitable isolation barrier such as a moat or a slot in the PCB. Additionally, use separate power supplies for the input and output circuits, and avoid common-mode voltage connections between the two circuits.
The maximum temperature rating for the ISO7821LLDW is 125°C. As the temperature increases, the device's performance may be affected, including reduced isolation voltage, increased propagation delay, and decreased common-mode rejection ratio (CMRR). Ensure proper thermal management and heat sinking to maintain optimal performance.
Yes, the ISO7821LLDW can be used in high-voltage applications up to 2500 Vrms. However, take precautions to ensure the device is properly isolated, and follow the guidelines in the datasheet for voltage rating, creepage, and clearance distances. Additionally, consider using external protection devices such as transient voltage suppressors (TVS) or surge arrestors to protect the device from voltage transients.
To troubleshoot issues with the ISO7821LLDW, start by verifying the input and output circuits are properly connected and powered. Check for proper isolation using a multimeter or oscilloscope, and ensure the device is properly configured and initialized. Consult the datasheet and application notes for troubleshooting guidelines, and consider using Texas Instruments' online support resources or contacting their technical support team for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7821LLDW Overview

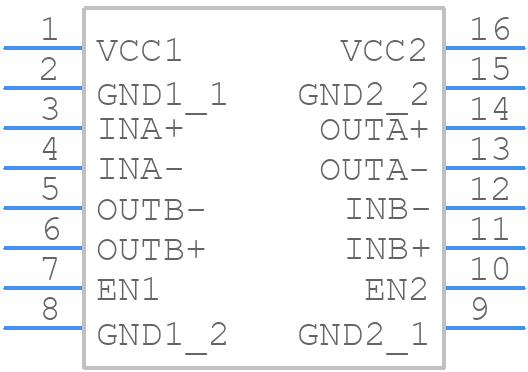

Use the download button to access the ISO7821LLDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO78,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
