Texas Instruments provides a recommended PCB layout in the ISO7830DWWR datasheet, which includes guidelines for trace routing, component placement, and thermal management. Following this layout ensures optimal performance, reduced EMI, and improved reliability.
To ensure reliable operation across the entire temperature range (-40°C to 125°C), it's essential to follow proper PCB design and layout guidelines, use suitable components, and implement adequate thermal management. Additionally, consider using a thermally conductive material for the PCB substrate and ensure good airflow around the device.
Not using the recommended input capacitance values can lead to reduced noise immunity, increased EMI susceptibility, and potentially even device failure. The recommended capacitance values are specified to ensure proper noise filtering and signal integrity, so it's essential to follow the datasheet guidelines.
While the ISO7830DWWR is designed for isolated applications, it can be used in non-isolated applications with some caveats. However, this may compromise the device's performance, reliability, and safety features. It's essential to carefully evaluate the application requirements and consider alternative devices if isolation is not necessary.
To troubleshoot common issues like output voltage droop or oscillations, start by verifying the PCB layout, component values, and input/output connections. Check for proper decoupling, adequate power supply filtering, and correct output loading. If issues persist, consult the datasheet, application notes, and Texas Instruments' support resources for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7830DWWR Overview

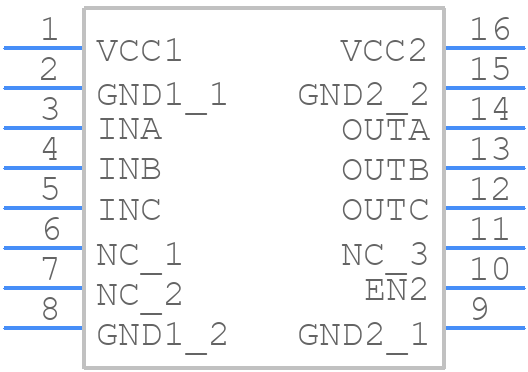

Use the download button to access the ISO7830DWWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO78,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
