Texas Instruments provides a recommended PCB layout in the ISO7830FDWWR datasheet, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance, low emissions, and high reliability.
The ISO7830FDWWR has a wide input voltage range of 1.8V to 5.5V. To select the correct input voltage range, consider the voltage requirements of your system, the power supply voltage, and the voltage tolerance of the device. Ensure the input voltage is within the recommended range to maintain device reliability and performance.
The ISO7830FDWWR supports data rates up to 100 Mbps, making it suitable for high-speed digital isolators in industrial, medical, and automotive applications.
The ISO7830FDWWR is rated for operation up to 125°C. To ensure reliable operation in high-temperature environments, follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
The ISO7830FDWWR has built-in ESD protection and latch-up prevention measures, including diodes and resistors, to protect the device from electrostatic discharge and latch-up events. However, it's still essential to follow proper handling and assembly procedures to prevent damage during manufacturing and operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7830FDWWR Overview

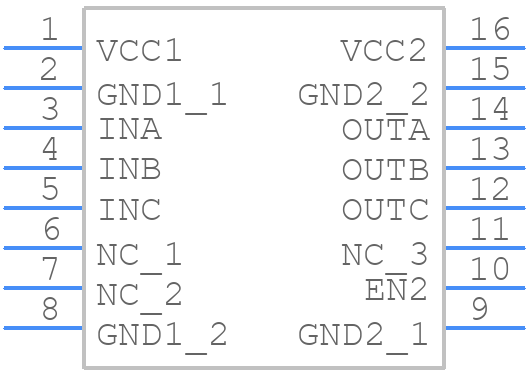

Use the download button to access the ISO7830FDWWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO78,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
