A good PCB layout for the ISO7831FDWWR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure proper power and decoupling, use a high-quality power supply, add decoupling capacitors (e.g., 10uF and 100nF) close to the device, and follow the recommended power-up sequence outlined in the datasheet.
When selecting an isolator, consider factors such as isolation voltage, data rate, power consumption, and package type. The ISO7831FDWWR is suitable for high-speed, low-power applications requiring 3.75kVrms isolation.
To troubleshoot issues, start by verifying the power supply and decoupling, then check the signal integrity and clock frequencies. Use oscilloscopes and logic analyzers to debug the issue. Consult the datasheet and application notes for guidance.
Yes, to minimize EMI/EMC issues, use a shielded enclosure, keep the PCB layout compact, and use EMI filters or common-mode chokes on the input/output lines. Follow the recommended layout and grounding practices outlined in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7831FDWWR Overview

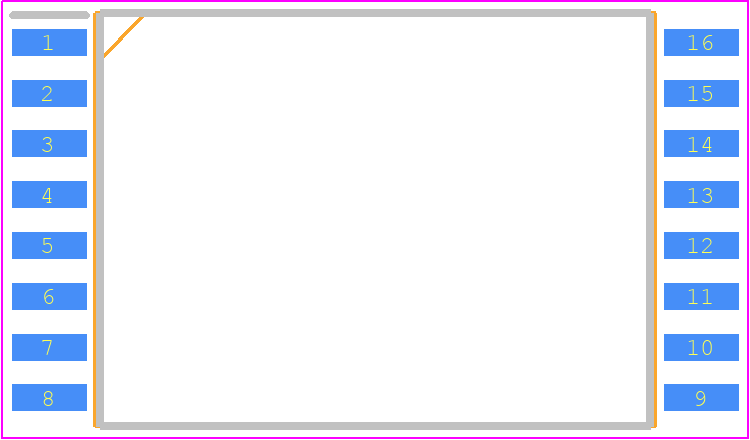

Use the download button to access the ISO7831FDWWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO78,
or try a keyword search, such as Other Interface ICs
