ISO7840DWW - Texas Instruments

Description: Digital Isolators Highest isolation rating, quad-channel, 4/0, reinforced digital isolator 16-SOIC -55 to 125

Download ISO7840DWW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

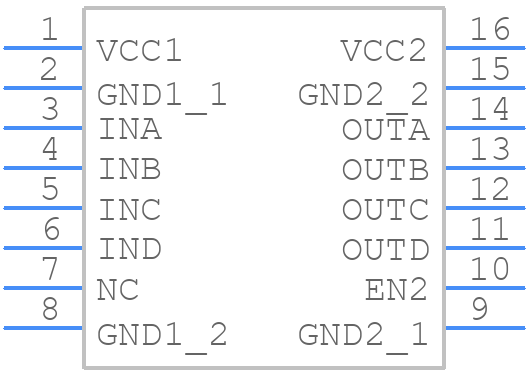

ISO7840DWW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO7840DWW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWW0016A_2022
click to zoom
3D Models
ISO7840DWW - Texas Instruments - 3D model - Small Outline Packages - DWW0016A_2022
click to zoom

ISO7840DWW Details

  • Manufacturer Part Number:

    ISO7840DWW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-12-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.7

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10.3 mm

ISO7840DWW Frequently Asked Questions (FAQs)

  • The maximum data rate is 100 Mbps, but it can be limited by the capacitance of the isolation barrier and the signal integrity of the system.
  • Ensure proper thermal management, use a heat sink if necessary, and follow the recommended operating conditions to prevent overheating, which can affect reliability.
  • Follow the recommended PCB layout guidelines in the datasheet, keep signal traces short and away from noise sources, and use a solid ground plane to minimize EMI and ensure signal integrity.
  • Use oscilloscopes and logic analyzers to monitor signals, check for signal attenuation, and verify proper power supply and ground connections to identify and resolve issues.
  • Yes, the ISO7840DWW is suitable for safety-critical applications. It meets IEC 60601-1 and IEC 61010-1 standards, and is certified for use in medical and industrial applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISO7840DWW Overview

Use the download button to access the ISO7840DWW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO78, or try a keyword search, such as Other Interface ICs
