TI recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's essential to follow the recommended layout guidelines in the datasheet to minimize EMI and ensure reliable operation.
To ensure reliable operation in high-temperature environments, it's crucial to follow the recommended operating temperature range (–40°C to 125°C) and to consider the device's power dissipation. Ensure proper thermal management, such as using a heat sink or thermal pad, and follow the recommended PCB layout guidelines.
The ISO7840FDWW can support data rates up to 100 Mbps, but the actual data rate may vary depending on the specific application, PCB layout, and system design. It's essential to consult the datasheet and application notes for more information on achieving high-speed data transmission.
To handle common-mode transients and EMI, it's recommended to use a common-mode choke or a ferrite bead in series with the input signal, and to follow proper PCB layout guidelines. Additionally, consider using shielding or a metal enclosure to reduce EMI radiation.
When selecting the correct input/output voltage levels, consider the voltage rating of the device (up to 5.5V), the voltage tolerance of the system, and the required signal swing. Ensure that the input/output voltage levels are within the recommended operating range to prevent damage or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7840FDWW Overview

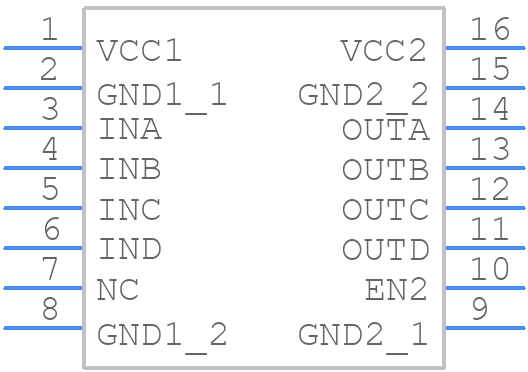

Use the download button to access the ISO7840FDWW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO78,
or try a keyword search, such as Other Interface ICs
